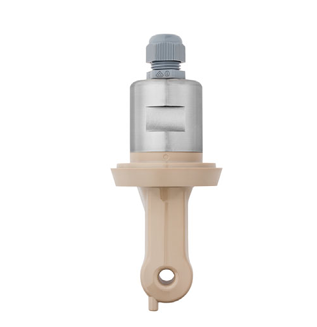

Jumo JUMO tecLINE Ci Inductive conductivity and temperature sensor (0 ~ 2000 mS/cm, Part No.: 00543048)

Order code: 202941/10-607-0-21-10/000

Conductivity measuring range: 0 - 500 µS/cm to 0 - 2000 mS/cm (depending on connected transmitter)

Basic type extension: Standard version

Process connection: Taper socket for union nut DN 50 DIN 11851 (dairy compression fitting)

Immersion length: without

Electrical connection: Fixed cable with M12 connector

Length of fixed cable: 10 m

The sensor acquires the electrolytic conductivity of a process liquid. The sensor uses the inductive measuring principle. An integrated temperature probe simultaneously acquires the process temperature. The overall construction of the sensor conforms to EHEDG standards.

Datasheet
