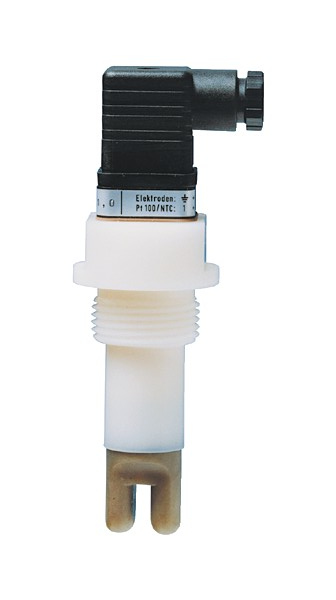

Jumo tecLine CR-GT Conductive two-electrode conductivity sensor (10 µS/cm ~ 15 mS/cm, Part No.: 00300200)

Order code:  202925/0100-1003-105-37-88-84

Cell constant: K = 1.0 (range 10 µS/cm – 15 mS/cm)

Temperature sensor: Pt100

Process connection: thread G 3/4A

Electrical connection: angled connector to DIN 43650 (Hirschmann connector)

Body material: PVDF (standard)

Cell material: graphite (standard)

These sensors are used in conjunction with conductivity transmitters to define the electrolytic conductivity in liquids. They are especially suitable for media separation, drinking water preparation, and for inspecting as well treating wastewater and service water.
