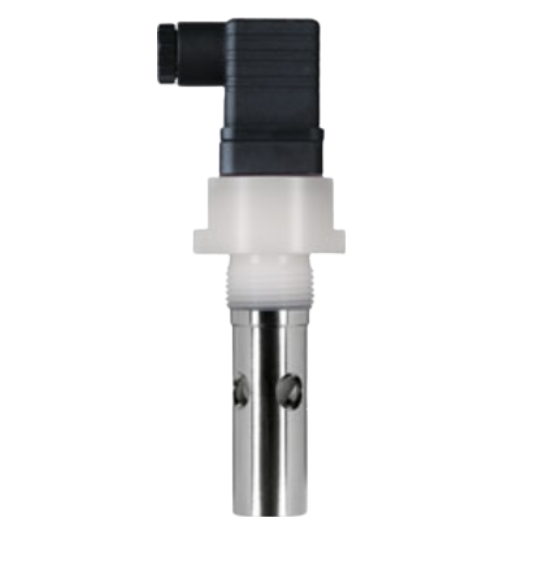

Jumo tecLine CR Conductive 2-electrode conductivity sensor (0.1 µS ~ 1 mS/cm, Part No.: 00300203)

Order code: 202924/10-0010-0000-105-37-88-26/000

Cell constant: K = 0.1 (measuring range 0.1 µS/cm to 1 mS/cm)

Measuring insert: None

Process connection: Thread G 3/4 A

Electrical connection: Right-angle connector according to DIN EN 175301-803

Process connection material: PVDF (default)

Electrode material: Stainless steel 1.4571

Extra codes: None

These sensors are used in conjunction with conductivity transmitters to define the electrolytic conductivity in liquids. The materials in the sensors are physiologically harmless and meet FDA requirements.
