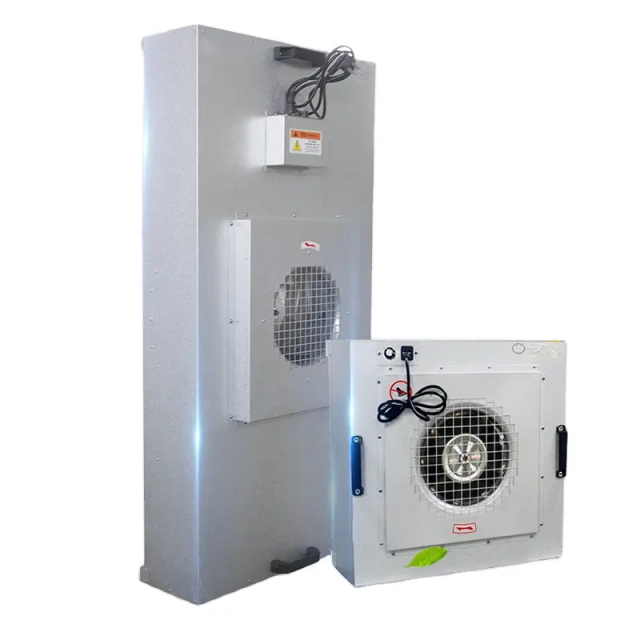

KESD KESD 1175*1175 Fan Filter Unit (2200m³/h±20%; 0.45m/s±20%)

FFU Dimension (mm): 1175*1175*225mm

Filter dimension (mm): 1170*1170*69mm

Air volume (m³/h): 2200m³/h±20%

Fan speed m/s (m/s): 0.45m/s±20%

Noise (db): 58~65db

Group control mode: RS485 communication (optional)

Impeller: Aluminum alloy

Speed control: 3 levels control

Power voltage: AC220V / 50Hz

Typical power (W): 140W~400W

Filter efficiency: 99.995%@0.3µm H14 (Filter can be customized)

Housing material: 304 Wire drawing stainless steel / 304 Mirror face stainless steel Aluminum-Zinc coated sheet / Cold-rolled sheet painting
