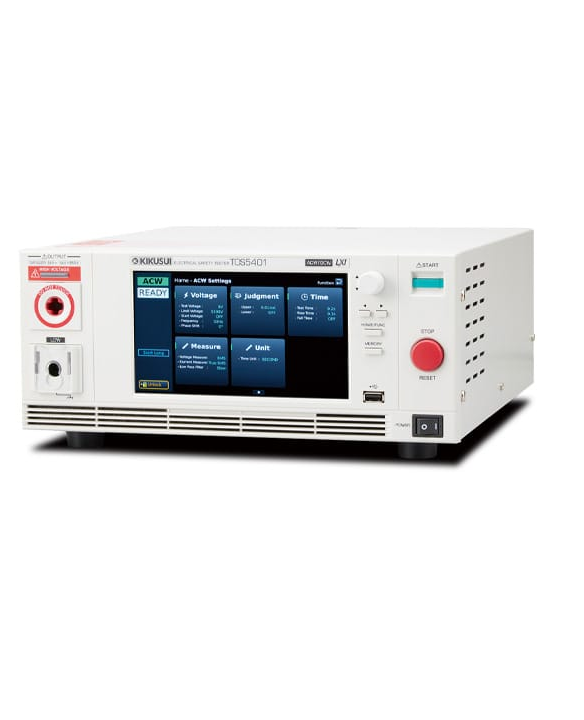

KIKUSUI TOS5401 AC/DC Hipot Tester (5 kV / 100 mA (500 VA); 6 kV / 10 mA (50 W))

Withstanding Voltage Test

AC output section (ACW only)

Output range: 0.05kV to 5.00kV

Output setting accuracy: ±(2% of setting + 20V) (at no load)

Output setting range:

0.000kV to 5.500kV

0.000kV to 1.500kV (When Time Unit is set to Cycle and Phase Shift is set to 0°)

Output resolution: 1V

Max. rated output *1: 500VA (5kV/100mA)

Max. rated voltage: 5kV

Max. rated current: 100mA (when the output voltage is 0.5kV or higher)

Transformer rating: 500VA

Output voltage waveform*2:

Waveforms: Sine

Phase shift: The output voltage waveform can start with a phase shifted approx. 90° from the zero-crossing point.

Distortion: 3% or less. (when the output voltage is 0.5kV or higher and no load or a pure resistive load is connected)

Frequency: 50Hz/60Hz

Frequency setting accuracy: ±0.5% (excluding during voltage rise time)

Voltage regulation: ±10% or less (when changing from maximum rated load to no load)

Input voltage variation: ±0.3%(5kV at no load; power supply voltage: 90V to 250V)

Short-circuit current: 200 mA or more (output voltage 1.0 kV or higher)

Output method: PWM switching

DC output section (DCW only)

Output range: 0.05kV to 6.00kV

Output setting accuracy: ±(2% of setting + 20V) (at no load)

Output setting range: 0.000kV to 6.200kV

Output resolution: 1V

Max. rated output *1: 50W (5kV/10mA)

Max. rated voltage: 6kV

Max. rated current: 10mA

Ripple (TYP):

5kV no load: 50Vp-p

Max. rated load: 100Vp-p

Voltage regulation: 3% or less (when changing from maximum rated load to no load)

Short-circuit current (TYP): 40mA (when generating 6 kV output)

Discharge function:

Forced discharge after test completion (discharge resistance: 125kΩ)*2 Maximum capacitance: 1μF*3

Discharge time: 0.0 to 100.0 seconds

Discharge function during interlock activation: ON/OFF

Measurement function

Measurement range: AC/DC: 0.000kV to 6.500kV

Display: □. □□□ kV

Accuracy:

V < 500V: ±(1.5% of reading + 10V)

V ≥ 500V: ± 1.5% of reading

Response*1:

ACW: True rms/ Mean-value response rms display can be switched.

DCW and IR: Mean-value

Hold feature: Holds the measured voltage value at the end of the test while the PASS/FAIL judgment result is displayed.

Digital ammeter

Measurement range:

AC: 0.00mA to 110mA

DC: 0.00mA to 11mA

Display (i = measured current):

i < 10uA: □. □μA

10uA ≦ i < 100uA: □□. □μA

100uA ≦ i < 1mA: □□□. □μA

1mA ≦ i < 10mA: □. □□□mA

10mA ≦ i < 100mA: □□. □□mA

100mA ≦ i: □□□. □mA

Accuracy*1 (i = measured current)

1.00mA ≦ i: ±(1.5% of reading)

i < 1.00mA: ±(1.5% of reading + 20 μA)

Response*2: ACW: True rms/ Mean-value response rms display can be switched.

Hold feature: The current measurement after a test is finished is held while the pass judgment is displayed.
