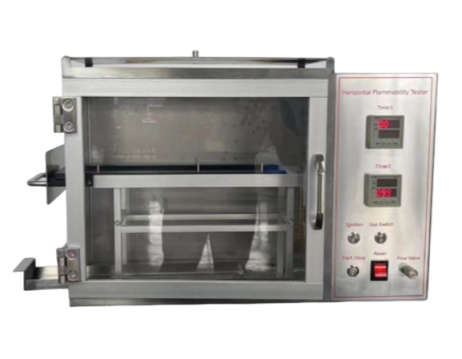

KINGPO FMVSS 302 Testing Flammability Of Textiles

Burning box inner size: 381mm×203mm×356mm

Fire nozzle diameter: 9.5mm

Flame height: 38mm±2

Specimen clamp: 360×100mm

Inner frame size: 330×50mm

Lower specimen clamp: Wire spacing is 25mm

Mark Line: Distance from the sample ignition at 38mm, 292mm

Nozzle Top Distance specimen surface: 19mm

Test environment: The temperature is 15 ~ 30 ° C, the relative humidity is 30% ~ 80%

Weight: 18kg
