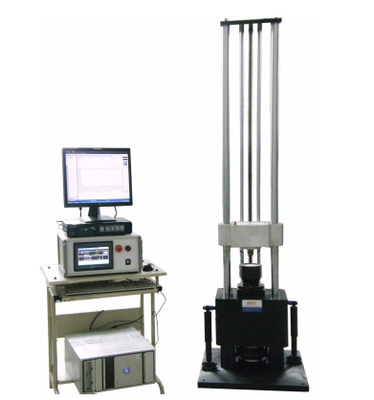

KINGPO HSKT10 Battery Mechanical Shock Test Equipment (20 - 1500G, 0.5~11ms , 10kg)

Operating platform: 200 × 200 mm

Max. load: 10KG

Peak acceleration: 20 to 1500G (customization acceptable)

Pulse duration: 0.5~11ms (customization acceptable)

Equipment dimensions: 560 × 670 × 2390mm

Equipment weight: 650 kg

Power required: 220VAC±10％ 50Hz, 2kVA

Measuring system

Input channels: 2 channels

Sampling frequency: 192KHz

Pulse duration: 50–1ms

Communication interface: USB2.0

Supportive standard: ISO, UN38.3, MIL-STD-810, user defined

Operating system: Microsoft Windows 7/8

System acceleration sensor

Brand: LAB

Model: 23108

Output mode: Charge type

Sensitivity: 3.93pC/g

Frequency range: 0.5 to 12KHz

Acceleration range: ±2500G

Operating environment: -40 to +160℃
