Features

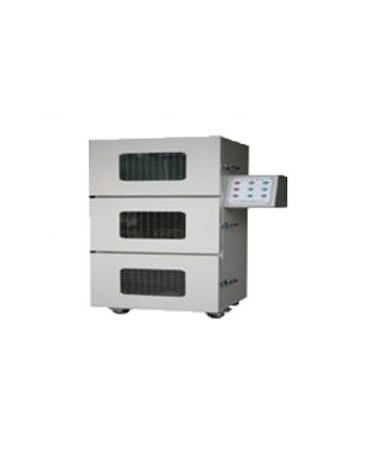

The tester is used for testing overcharging and over-discharging of battery.
The tester is divided three layer with three test chamber.
Test result is non explosion, no fire, non air leaking, non electrolyte leakage for the qualified battery.
Dimensions: 500 × 500 × 500 mm (three layers)
Material
External box: A3 steel sheet with baking finish
Internal box: SUS#304 (stainless steel)
Door
Single door, or double opening door made of stainless steel
Observin Window: 5 mm tempered glass
Door Accessories
Reinforced hinge; explosion-proof handle locks
Teflon cloth stuck on 1/3 inside of the internal chamber to prevent corrosion
Two round holes at the back for cable connection, diameter φ50 mm
Separate air exhausting outlet for each test chamber
Exhaust fan for each chamber at the back, with exhaust tube connecting to reinforced exhaust fan outside the laboratory
Heat-insulation device for each layer to prevent mutual interference between layers
