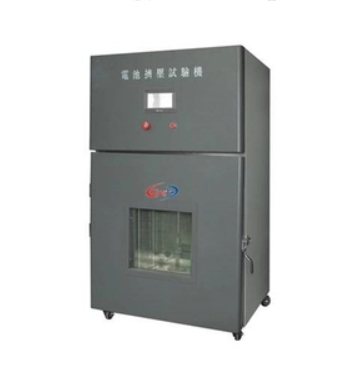

KINGPO KP8101 Battery Crush Test Chamber (1kN – 13kN)

Maximum Pressure: 1KN–13KN (Adjustable)

Piston Diameter: 32mm

Driving System: Hydraulic

Unit Shift: Kg/N/Lb

Extrusion Stroke: 0~300mm

Extrusion Accuracy: ±1%

Holding Time: 0~99h 99min 99s

Max Test Space: W370 x D300 x H300 mm

Control Mode: PLC Touch Screen Control System (7 Inches Touch Screen)

Exterior Dimension: W940 x D780 x H1620 mm

Observation Window: 390 x 360 mm (20mm Toughened Explosion-Proof Glass)

Power Supply: AC 380V 50HZ

Power: 2.0KW
