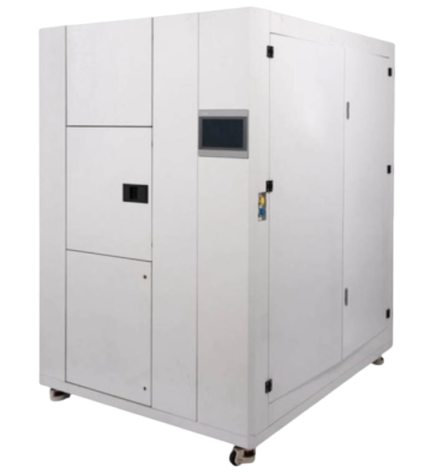

KINGPO QTS3-100 Three Chamber Cold and Thermal Shock Test Chamber (60~+150℃, 400x500x500mm)

Inner box size(W*H*D)mm: 400x500x500

Preheating temperature upper limit: 180℃(Non-standard can be customized to 200℃)

Temperature rise time: RT→+200℃≤40min

Lower limit of preheating temperature: A (-10℃~-55℃);B (-10℃~-65℃);C (-10℃~-80℃) conditions are optional

Temperature drop time: RT→-80℃≤90min

High temperature impact range: 60~+150℃(can be customized to 180℃)

Low temperature shock range: L (-10℃~-40℃);F (-10℃~-55℃);X(-10℃~-65℃) conditions are optional

Temperature fluctuation degree: ≤±0.5℃

Temperature Deviation: ≤±2℃

Temperature recovery time: ≤5min

Dampers switching time: High temperature tank → low temperature tank steel within 3 seconds

Basket movement time: Within 10S

Inner and outer box material: Steel plate baking paint or 304 stainless steel

Insulation material: High density polyurethane foam insulation material with high and low temperature resistance

Cooling method: Air-cooled or water-cooled type with imported brand compressor

Safety protection devices: Leakage, short circuit protection, compressor high and low voltage protection, refrigerant high pressure protection, fault alarm system
