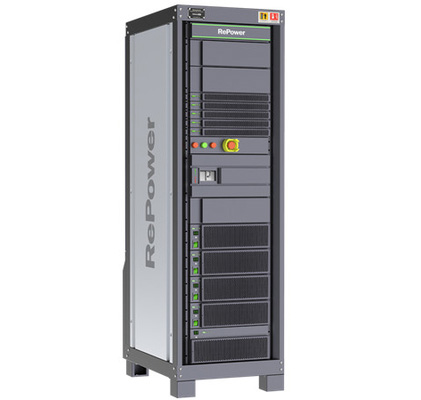

KINGPO RCDS-100V100A Charge And Discharge Battery Testing Machine (150mA, 0.2V – 100V, –200A ~ +200A, –50℃ ~ 300℃)

Number Of Main Channels: 4CH / Rack

Output Power: Maximum power 10kW for channel operation; no time limit

Output Power Stability:  ±(0.1%FS + 0.1%RD)

Power Factor: ＞99% (loaded to capacity)

Input Side Power Quality : Total Harmonic distortion rate: ≤5% (loaded to capacity)

Energy Consumption Parameters: Standard sine wave feedback energy, high efficiency (optimum efficiency 90%)

Main Channel – Voltage

Single Channel Measurement Range: 0.2V–100V, with continuously adjustable intermediate values (wide test range, suitable for various battery module test requirements)

Minimum Discharge Voltage: 7V

Precision: ±(0.05%FS + 0.05%RD)

Resolution: 1mV

Main Channel – Current

Single Channel Measurement Range: –200A ~ +200A

Minimum Output Current: 150mA

Precision: ±(0.05%FS + 0.05%RD)

Resolution Ratio: 1mA

Response Time: ＜10ms

Apolegamy Assist – Voltage

Number Of Channels: 32

Measurement Range: DC: 0–5V

Measurement Precision: ±(0.05%FS + 0.05%RD)

Resolution Ratio: 1mV

Apolegamy Assist – Temperature

Number Of Tracks: 8

Measuring Range: –50℃ ~ 300℃

Accuracy In Measurement: ±1℃

Resolution Ratio: 0.1℃

Time

Data Acquisition Resolution: 10ms
