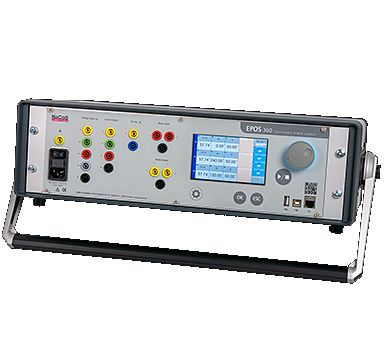

KoCoS EPOS 360 The multi-functional three-phase signal generator (DC ~ 3 kHz)

Sources: Separately and independently adjustable from each other

Frequency range: DC...3 kHz

Transient signals: DC...4 kHz

Phase angle: 0...360°

Voltage amplifier 4-phase: 4 × 0...300 V / 75 VA

Voltage amplifier 1-phase: 1 × 0...600 V / 150 VA

Current amplifier 3-phase: 3 × 0...16 A / 40 VA

Current amplifier 1-phase: 1 × 0...32 A / 80 VA

DC output: 12...260 V, 50 W, 2 A

Binary inputs: 2

Binary outputs: 2

Operation: Touch screen, jog wheel, membrane keyboard with function keys, PC

Display: High resolution, resistive 5" touch screen

Interfaces: USB-A/B, RJ45

Status LEDs: Signaling of active current and voltage outputs and status of binary I/O via LEDs

Supply voltage: 100...265 VAC / 120...265 VDC / 47...63 Hz

Housing: 19" installation housing, H8 (station), optional portable housing

Weight: 9 kg
