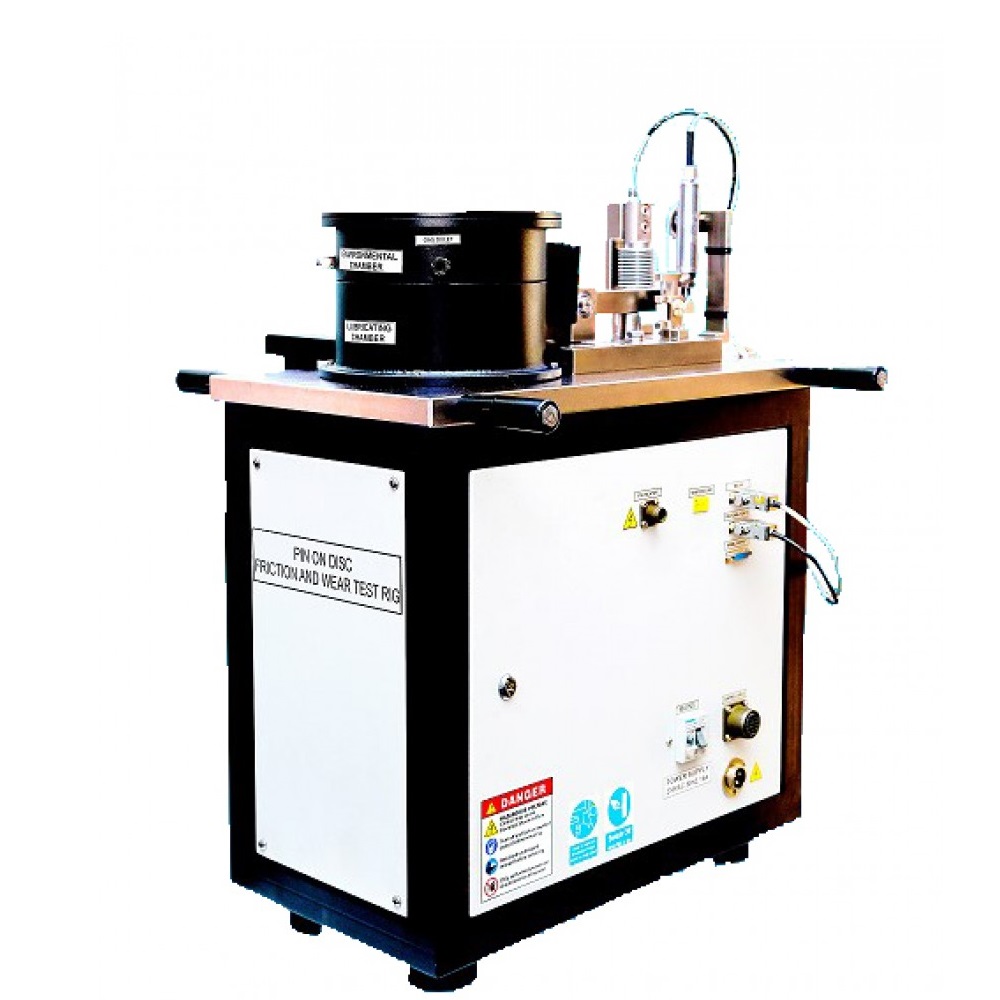

Determines the wear of materials during sliding using a pin-on-disc apparatus.
Specifications
- Conforms to the specifications of: ASTM G99
- Sliding speed range: 0.26-10 m/sec
- Disc rotation speed: 100-2000 rpm
- Maximum normal load: 200N
- Frictional force: 0-200N
- Wear measurement range: 4mm
- Pin size: 3-12mm diagonal/diameter
- Disc size: 60mm diameter x8mm thick
- Wear track diameter: 0-140mm
Electrical requirements: 230V 50/60Hz
Shipping information
- Shipping weight: 440 lbs (200kg)
- Dimensions: 18 Cu. ft.
Included accessories
- Electronic Controller
- Connecting Cables
- Spare Fuse (2)
- Set of Weights
- Set of Hand Tools
- Set of Pins
Additional accessories
- K93900 Data Acquisition Software
- K93500-1 Environmental Chamber
- K93500-2 Lubricant Recirculation System
- K93500-3 Pin - Heating System, up to 250°C
- K93500-4 Specimen Holders (ball, square, rectangle)
- K93500-5 Wear Discs
