Color: Black
Unit Weight: 4.675 g
REACH - SVHC: Details

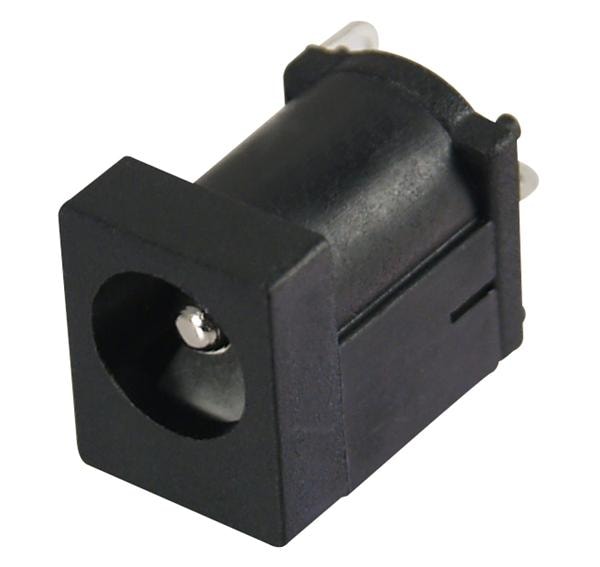

Connector Type: DC Power Jack
Contact Gender: Female
Current Rating: 5 A
Mounting Angle: Straight
Mounting Style: Panel
Voltage Rating: 24 VDC
Contact Plating: Tin
Contact Material: Brass, Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Center Pin Length: 4.4 mm
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Insulation Resistance: 50 MOhms
Inside Contact Diameter: 2 mm
Outside Contact Diameter: 5.7 mm
