- Attributes
Region: International
Width: 8'
Airflow Monitor: Guardian 1000 Digital
Air Usage/Static Pressure with Sash At Working Height: At 60 fpm, exhausts 465 CFM at .15" H2O static pressure. At 80 fpm, exhausts 620 CFM at .27" H2O static pressure.
Blower Requirements: Remote blower or FilterMate Portable Exhauster(s) and filters required
Conformance: ANSI Z9.5, Modified ASHRAE 110, SEFA 1
Lighting: None. Light Kit Accessory available.
Sash Opening Height: 12.0" (30.5 cm)

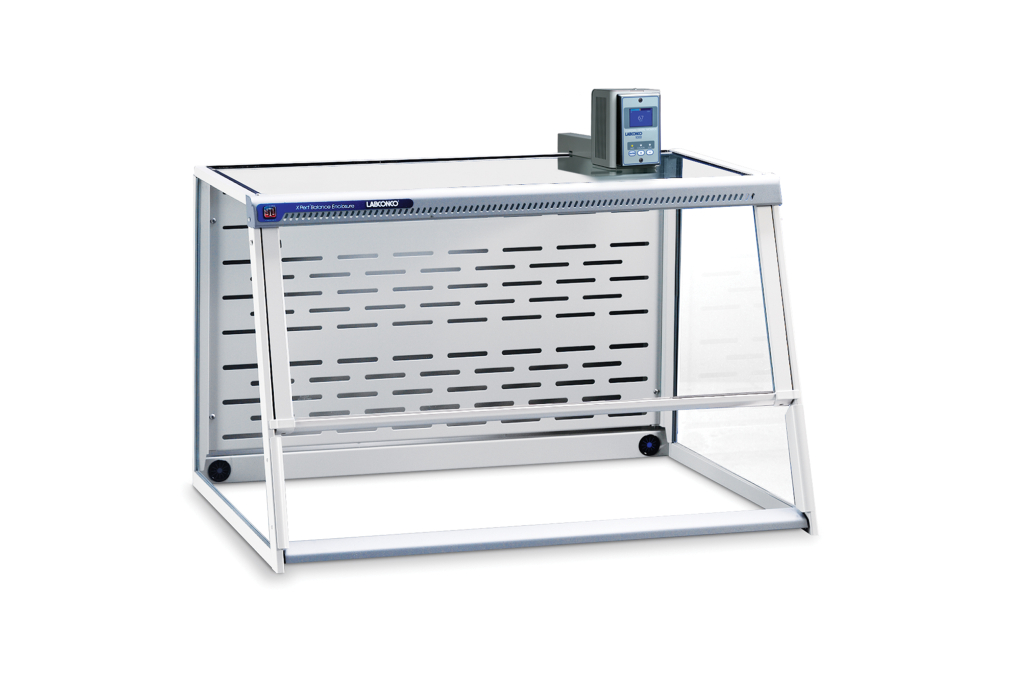

Type: Balance Enclosure
With Built-In HEPA Filtration: No
- Specifications
Estimated Shipping Weight: 580.0 lbs
Estimated Shipping Weight metric: 263.0 kg
Dimensions: 96"w x 35.5"d X 37.8"h
Electrical: 230 volts, 50/60 Hz, no plug
- Required Accessories
Connection to a remote blower or FilterMate Portable Exhauster.
Work surface.
Supporting base.
Carbon Filters for Some Models (see brochure).
- Optional Accessories
Fluorescent Light Kits for installation atop the Enclosure for enhanced illumination of the interior. Include
auxiliary electrical receptacle with switch.
Transition Adapters for connecting ductwork routed either up or down
Exhaust Dampers to allow adjustment to the airflow
Utility Shelf Kit for attaching to the rear baffle perforations to hold a printer, utensils and other
miscellaneous weighing supplies
Replacement HEPA Filter
Replacement Bag for HEPA Filter Bag-In/Bag-Out to ensure contamination of particulate matter during filter
changing.
