LABTONE HSKT5 Pneumohydraulic Shock Impact Testing Equipment (5kg; 150 x 150mm)

Table size (mm): 150 x 150

Specimen max weight(kg): 5

Shock pulse: Half-sine

Acceleration range (m/s2): 20----1500

Pulse duration range (ms): 0.5~11

Seismic base: Pneumatic springs device

Utility reqyurements: AC220V 50Hz 5A Air pressure:more than 0.5Mpa

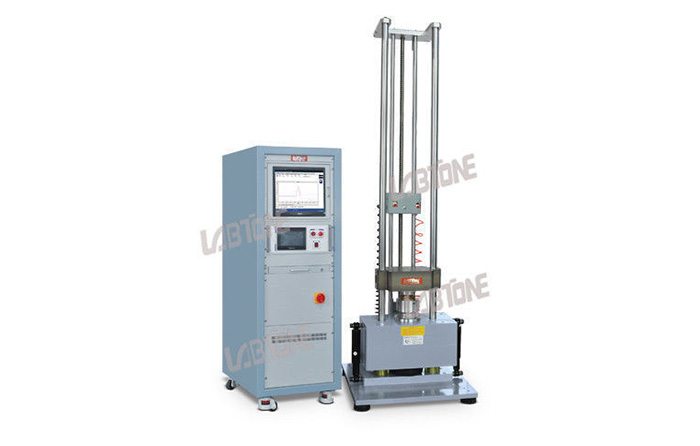

*Product image is for illustrative purposes only

Features: While a non-repetitive mechanical shock environment is encountered, find out the mechanical weakness and decay of specific functions. Basically simulate the consequence of random shock possibly encountered during transporting or operation process. While running a shock test, normally fix the specimen on fixture or testing table; wave model frequently selected per specification is the half-sine wave.
