Technical parameters
Frequency range: 100 kHz - 3 GHz
Gain: 20 dB
Weight: 400 g
Scope of delivery

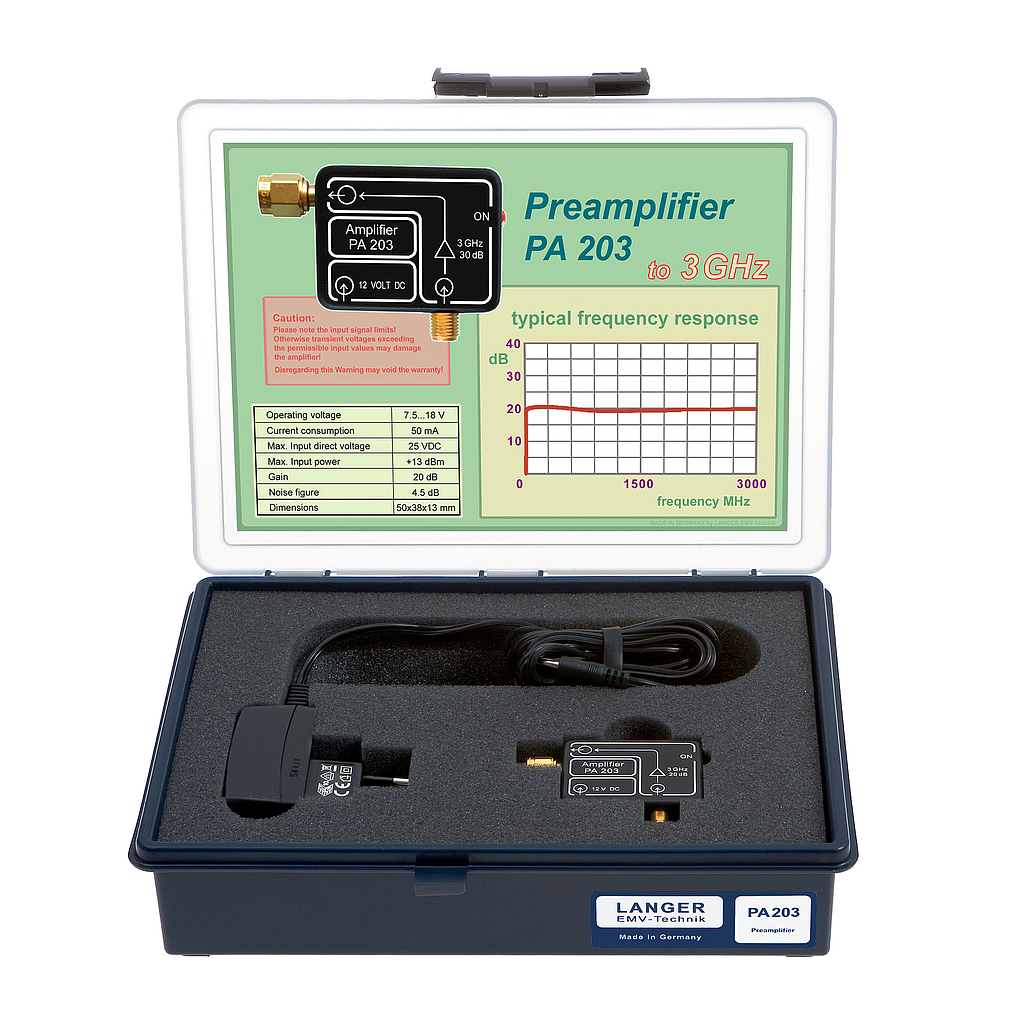

1x PA 203 SMA, Preamplifier 100 kHz up to 3 GHz
1x NT FRI EU, Power Supply Unit
1x Case 5, System Case Near-Field Probes
Short description
The PA 203 preamplifier is designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 203 is connected to the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the wall-plug transformer. With the correct cable, a near-field probe can be connected to the input of the preamplifier.
The input and the output of PA 203 SMA use a SMA connector.
Datasheet
