LANGER EMV-Technik PA 3010 set 프리앰프 (10 MHz - 10 GHz)

Technical parameters

Frequency range: 10 MHz - 10 GHz

Gain: 30 dB

Weight: 400 g

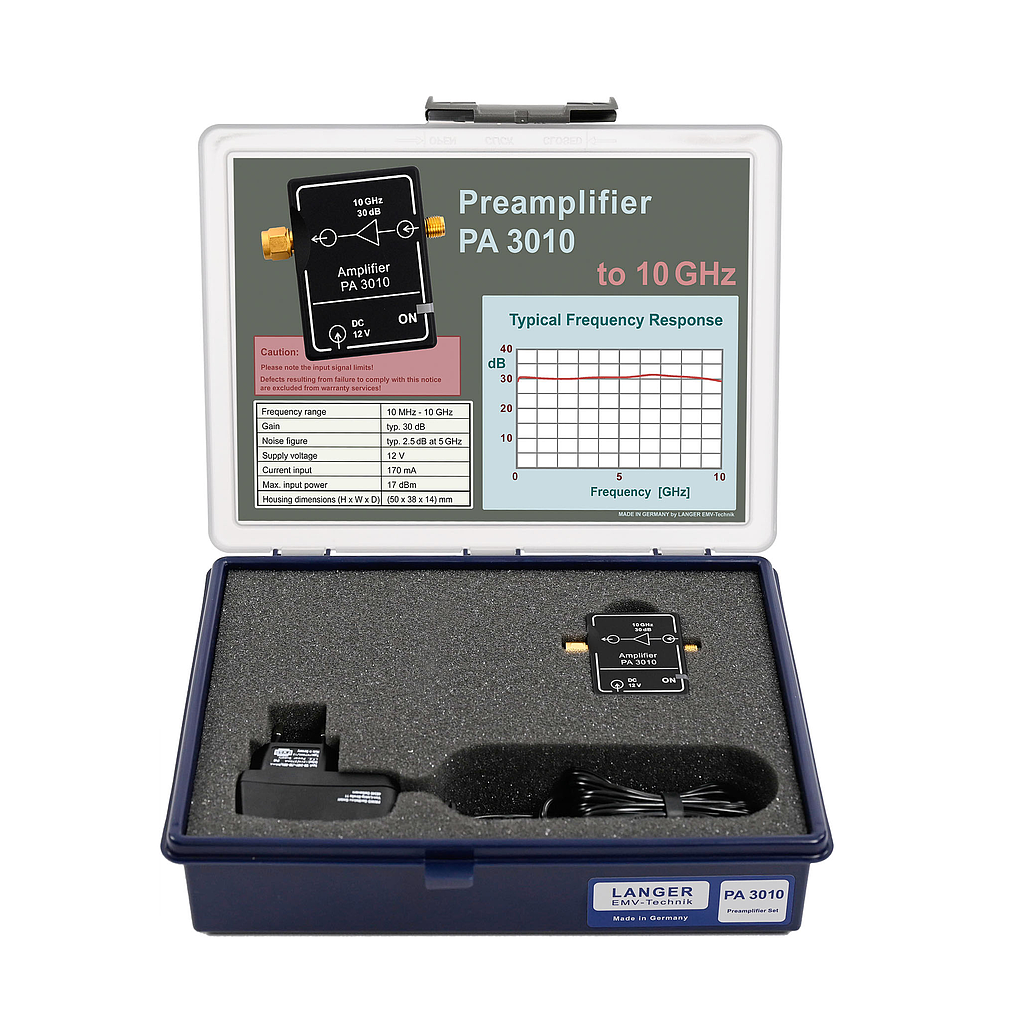

Scope of delivery

1x PA 3010, Preamplifier 10 MHz up to 10 GHz

1x NT FRI EU, Power Supply Unit

1x Case 5, System Case Near-Field Probes

Short description

The PA 3010 preamplifier was designed for the amplification of measuring signals, e.g. weak signals of near-field probes with high resolution. The PA 3010 is to be used with the 50 ohm input of a spectrum analyzer or an oscilloscope and is powered by the plug-in power supply. With the correct cable a near-field probe can be connected to the input of the preamplifier. Input and output of the PA 3010 are SMA connectors.
