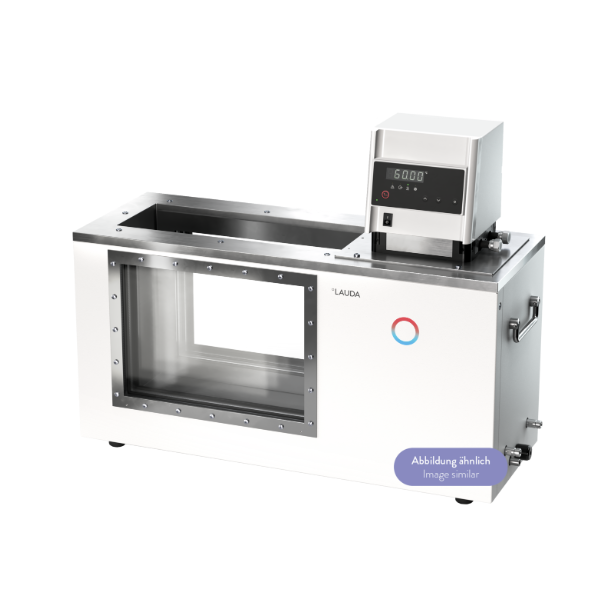

Lauda PV 15 Thermostatic Bath (30 ... 230 °C, 3.7 kW, 15.0L)

Working temperature range: 30 ... 230 °C

Working temperature range with water cooling: 20 ... 230 °C

Operating temperature range: 0 ... 230 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.01 ± K

Heater power max.: 3.6 kW

Current consumption: 16 A

Max. power consumption: 3.7 kW

Max. discharge pressure: 0.8 bar

Max. pump flow pressure: 25 L/min

Min. / max. bath volume: 11.0 / 15.0 L

Dimensions (WxDxH): 506 x 282 x 590 mm

Weight: 29 kg

Power supply: 230 V; 50/60 Hz
