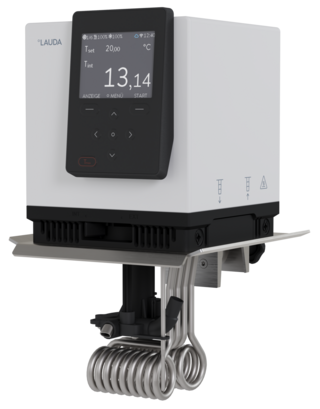

Lauda Universa PRO Immersion thermostats (30 ~ 200 °C)

Working temperature range: 30 ... 200 °C

Working temperature range with water cooling: 20 ... 200 °C

Operating temperature range: -30 ... 200 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.02 ± K

Current consumption: 12 A

Max. discharge pressure: 0,6 bar

Max. pump flow pressure: 22 L/min

In / Outlet connection thread (outside): M16 x 1

Dimensions (W x D x H): 195 x 234 x 333 mm

Weight: 6 kg

Power supply: 200-240 V, 50/60 Hz

Power plug: Power cord with angled plug (CEE7/7)

Datasheet
