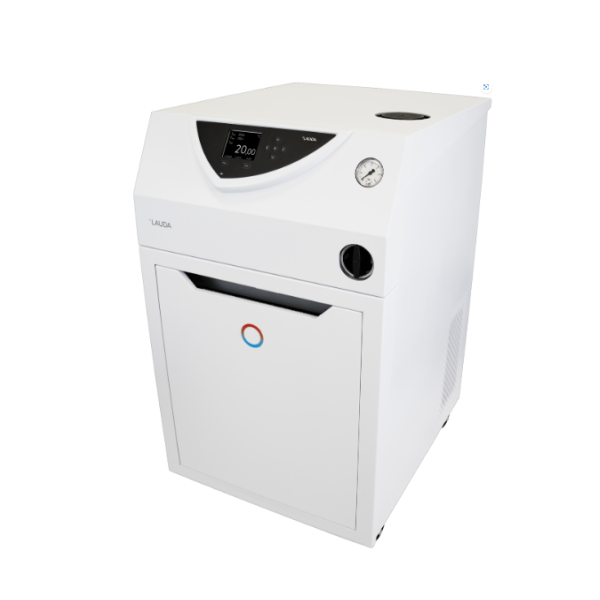

Lauda VC 5000 W 냉각 온도 조절기 (-20 ... 80 °C, 33 L)

Working temperature range: -20 ... 80°C

Ambient temperature range: 5 ... 40°C

Temperature stability: 0.05 ± K

Heater power max.: 4.5 kW

Max. power consumption: 7.8 kW

Current consumption: 12 A

Max. discharge pressure: 3.2 bar

Max. pump flow pressure: 37 L/min

Max. filling volume: 33 L

Cooling water flow rate: 10 L/min

Pressure difference cooling water min.: 3 bar

Maximal pressure cooling water: 10 bar

Dimensions (WxDxH): 550 x 650 x 970 mm

Weight: 97 kg

Power supply: 400 V; 3/N/PE; 50 Hz
