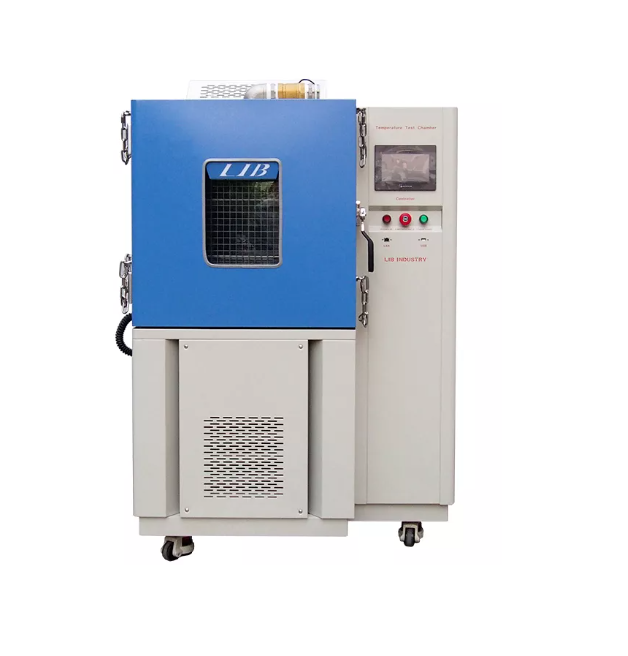

LIB T-100-C Aging Thermal Cycling Environmental Battery Test Chamber (100L; -86℃)

Internal dimension (mm) : 400*500*500

Overall dimension (mm): 860*1050*1620

Capacity: 100L

Temperature range: -20℃ ～+150 ℃

Low type: -86℃

Temperature fluctuations: ± 0.5 ℃

Temperature deviation: ± 2.0 ℃

Heating rate: 3 ℃ / min

Cooling rate: 1 ℃ / min

Controller: Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Refrigerant: R404A, R23

Exterior material: Steel Plate with protective coating

Standard configuration: 1 Cable hole (Φ 50) with plug; 2 shelves

Timing Function: 0.1~999.9 (S、M、H) settable

Explosion-Proof Safety: Reinforced door locks, observation windows, terminal blocks, and an integrated fire suppression sprinkler system

Technical Advantages

1. Explosion-Proof Safety: Reinforced door locks, observation windows, terminal blocks, and an integrated fire suppression sprinkler system provide maximum protection during high-temperature abuse testing, ensuring operator and laboratory safety even under thermal runaway conditions.

2. Rapid Thermal Cycling: The chamber supports multiple heating and cooling rates—5 °C/min, 10 °C/min, 15 °C/min, and customizable up to 20 °C/min—allowing accelerated testing that simulates real-world rapid temperature changes while significantly reducing test duration.

3. Precision and Uniformity: High-accuracy PT100 Class A sensors combined with intelligent PID control maintain temperature stability within ±0.5 °C. Optimized airflow ensures uniform temperature distribution throughout the workspace, delivering reliable and repeatable results for all battery types.

4. Customizable Testing: Supports up to 120 programs with 100 steps each, enabling complex multi-stage thermal tests tailored to industry standards or specific R&D requirements. Test sequences can simulate repeated aging cycles, thermal abuse, and rapid environmental transitions without operator intervention.

5. Robust Construction: The SUS304 stainless-steel interior resists corrosion and simplifies maintenance, while the reinforced steel exterior ensures structural stability under extreme conditions, providing long-term durability for continuous testing programs.

6. High Throughput: With large internal volumes ranging from 225 L to 1000 L and rapid temperature cycling, the chamber increases laboratory efficiency, supporting simultaneous testing of single cells, battery modules, or full packs for R&D, quality assurance, and safety validation.
