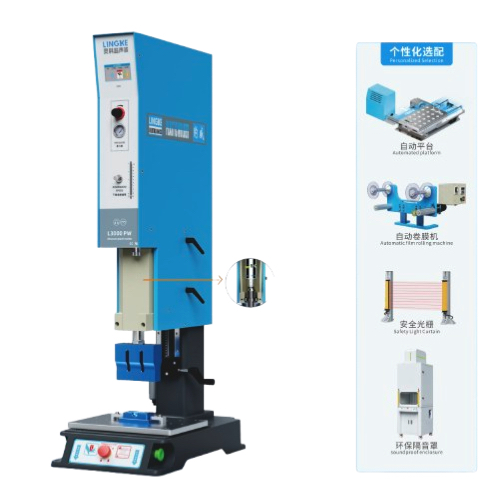

Lingke L3000 PW Intelligent Digitalization Type Ultrasonic Welder (20kHz: 2000W; 15kHz: 3000W)

Frequency: 20kHz / 15kHz

Power: 2000W / 3000W

Input Voltage: AC220V

Cylinder Size (mm): 63 × 75

Machine Journey: 280mm

Output Time: 0.01-9.99s

Air Pressure: >1, ≤7bar

Welding Capability: Φ170mm / Φ260mm

Operation Switch: Two-hand release, emergency stop button at the front, and adding external control switch supported.

Dimension (Press): 680 × 400 × 1606 mm

Net Weight (Press): 128kg
