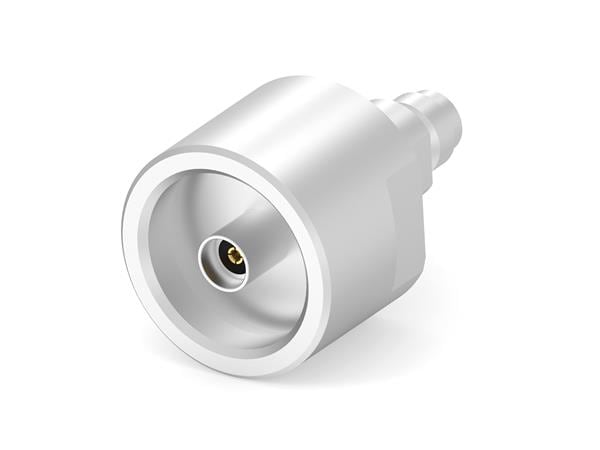

Linx Technologies - TE Connectivity 2441445-1 RF 어댑터 - 시리즈 간 2.4mm 암컷 TO 2.92mm 암컷 S/T NMD 어댑터, 50 옴

Impedance: 50 Ohms

Orientation: Straight

REACH - SVHC: Details

Adapter Style: Female to Female

Body Material: Stainless Steel

Side 1 Gender: Jack (Female)

Side 2 Gender: Jack (Female)

Contact Plating: Gold

Frequency Range: DC to 40 GHz

Side 1 Polarity: Normal

Side 2 Polarity: Normal

Contact Material: Beryllium Copper

Side 1 RF Series: 2.4 mm

Side 2 RF Series: 2.92 mm

Maximum Frequency: 40 GHz

Minimum Frequency: DC

Side 1 Body Style: Standard

Side 2 Body Style: Bulkhead
