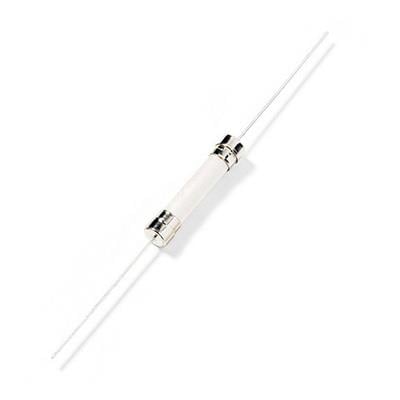

Length: 32.72 mm
Diameter: 6.985 mm
Fuse Type: Time Delay / Slow Blow
Body Style: Cylindrical Leaded
Resistance: 1.9 mOhms
Unit Weight: 2.800 g
Current Rating: 30 A
Mounting Style: Board Mount
Indicator Style: Without Indicator
Interrupt Rating: 600 A at 125 VDC
Fuse Size / Group: 3AB (6.3 mm x 32 mm)
Termination Style: Axial
Voltage Rating AC: 250 VAC
Voltage Rating DC: 125 VDC
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
