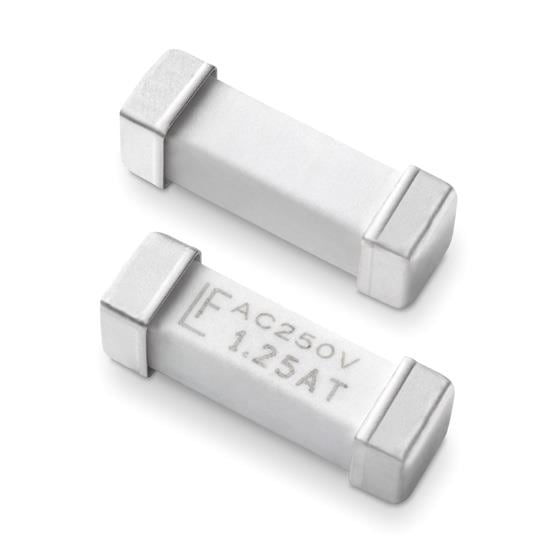

Littelfuse 04431.25ERE 표면 실장 세라믹 퓨즈 FUSE 250V TL HBC NANO2 ROHS 1.25A

Width: 3.048 mm

Height: 3.048 mm

Length: 10.084 mm

Fuse Type: Medium / Normal Blow

Resistance: 100 mOhms

Current Rating: 1.25 A

Interrupt Rating: 200 A at 250 VAC, 200 A at 250 VDC

Fuse Size / Group: 10.08 mm x 3.05 mm

Voltage Rating AC: 250 VAC

Voltage Rating DC: 250 VDC

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
