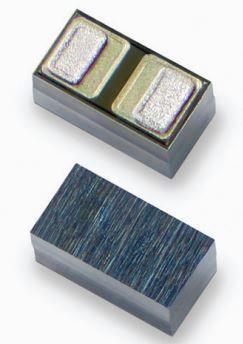

Littelfuse SP15-01WTG-C-HV TVS 다이오드 15V 100W

Polarity: Bidirectional

Unit Weight: 1.095 g

Working Voltage: 15 V

Clamping Voltage: 27 V

Breakdown Voltage: 16.7 V

Termination Style: SMD/SMT

Number of Channels: 1 Channel

Cd - Diode Capacitance: 21 pF

Ipp - Peak Pulse Current: 5 A

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Pppm - Peak Pulse Power Dissipation: 100 W
