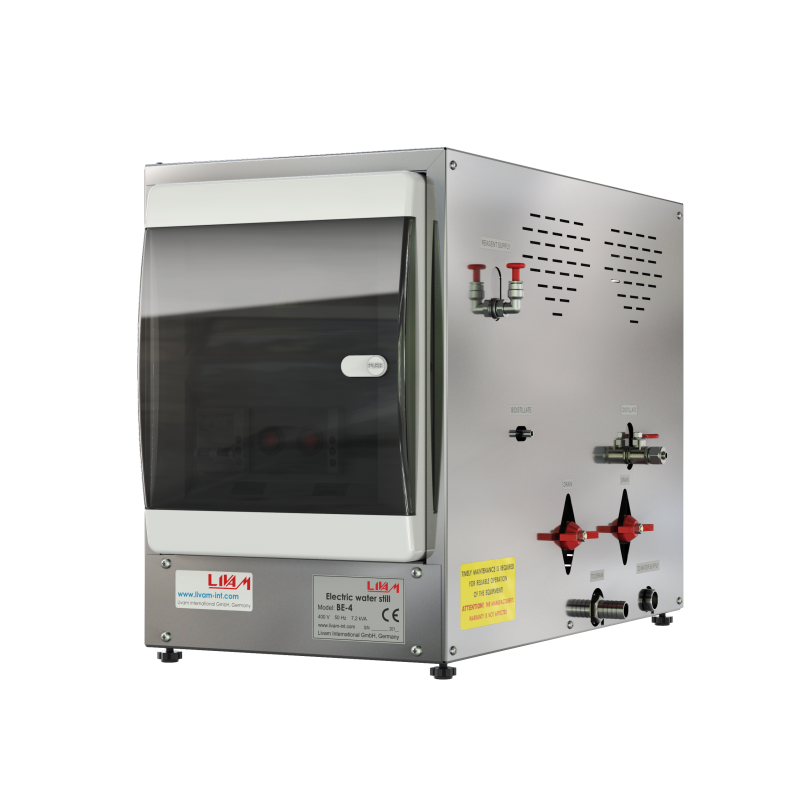

Livam/Germany BE-12 Double Distillation Water Still

Capacity, l/h

distillate: 13.8

double distillate: 12.0

Electrical conductivity of product water

double distillate: 1.0-1.2 μS/cm

distillate: 5.0 μS/cm max

Quality of product water: Type II, III

Product water temperature, °С

distillate: from 70 to 85

double distillate: 40 max

Current type, frequency, voltage: three-phase AC, 50 Hz, 380 V

Power consumption:

distillate: 8.1 kVA

double distillate: 15.3 kVA

Source water consumption, l/h (at water t from 10 to 12 °С at pressure from 0.2 to 0.4 MPa)

distillate: 104.0

double distillate: 240.0

Source water pressure, MPa: 0.1 – 0.4

Dimensions (LxWxH), mm: 675×365×470

Type of mounting: Desktop mounting with adjustable legs. Wall mounting is possible.

Weight with control unit, kg: 30.0

Heating elements: the first distillation step: Tubular heating element 2.0 kW 220V (stainless steel) - 3 pc. the second distillation step: Tubular heating element 1.8 kW 220V (stainless steel) - 3 pc.

Factor of water purification from radionuclides, min: 4000
