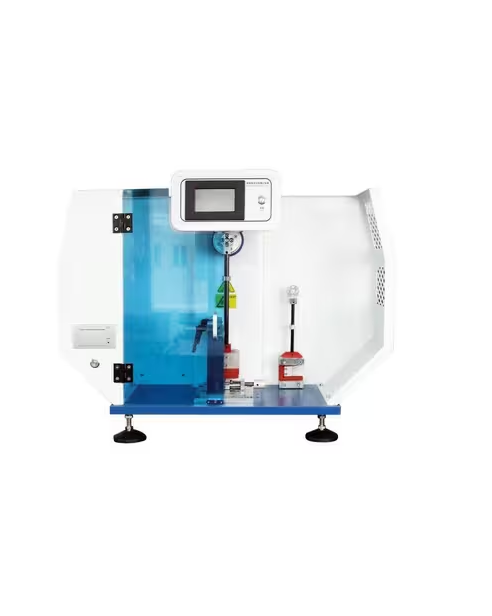

LIYI LY-XJLD5.5 Plastic Digital Charpy And Izod Impact Tester Universal Testing Machine

Charpy Impact

Pendulum energy: 1J, 2J, 4J, 5J

Pendulum angle: 150°

Impact speed: 2.9m/s

Impact center distance: 221mm

Blade angle: 30°

Blade filleted radius: R=2mm±0.5mm

Blade front angle: 5°

Blade back angle: 10°

Energy loss

0.5J ≤4.0J

1.0J ≤2.0J

2.0J ≤1.0J

≥4.0J≤0.5J

2.75J ≤0.06J

5.5J ≤0.12J

Pendulum torque

Pd1J=0.53590Nm

Pd2J=1.07180Nm

Pd4J=2.14359Nm

Pd5J=2.67949Nm

Izod Impact

Pendulum energy: 1J, 2.75J, 5.5J

Pendulum angle: 150°

Impact speed: 3.5m/s

Impact center distance: 335mm

Blade angle: 30°

Blade filleted radius: R=0.8mm±0.2mm

Blade front angle: 5°

Blade back angle: 10°

Energy loss

2.75J ≤0.06J

5.5J ≤0.12J

Pendulum torque

Pd2.75J=1.47372Nm

Pd5.5J=2.94744Nm

Print out: Capacity. Angle, energy, etc.

Power supply: AC220V±10% 50HZ
