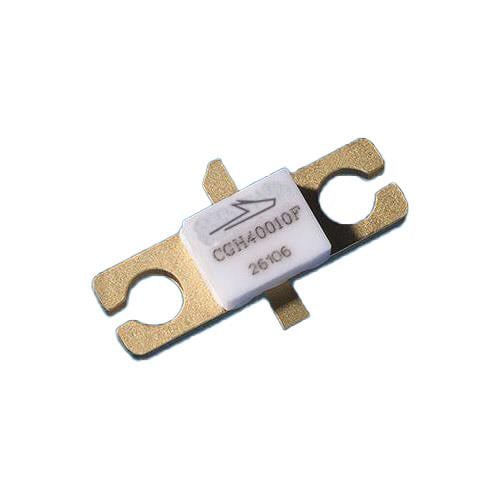

MACOM CGH40010F GaN HEMTs GaN HEMT DC-6.0GHz, 10 와트

Gain: 14.5 dB

Technology: GaN

Unit Weight: 7.396 g

Output Power: 12.5 W

Configuration: Single

Mounting Style: Screw Mount

Development Kit: CGH40010-TB

Transistor Type: GaN HEMT

Transistor Polarity: N-Channel

Maximum Operating Frequency: 6 GHz

Minimum Operating Frequency: 2 GHz

Id - Continuous Drain Current: 1.5 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Vgs - Gate-Source Breakdown Voltage: - 10 V to 2 V

Vds - Drain-Source Breakdown Voltage: 120 V

Vgs th - Gate-Source Threshold Voltage: - 3 V
