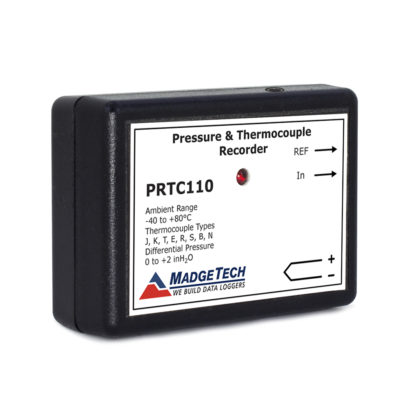

Madgetech PRTC110-2inH2O Differential Pressure and Thermocouple Temperature Recorder (-20 ºC - +80 ºC; 0 - 2inH2O)

문의하기
안전한 결제
품질 보장
간편 교환 및 반품
배송 가능

General:

Memory: 10,922 readings per channel

Reading Rate: 1 reading every 2 seconds to 1 reading every 24 hours

Baud Rate: 57600

Cold Junction Compensation: Automatic

LED Indicators: Red

Material: ABS Plastic

Dimensions: 2.7 in x 1.6 in x 0.8 in (68 mm x 41 mm x 20 mm) plus connective tubing

Operating Environment: -20 °C to +80 °C (-4 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Approvals: CE

Temperature:

Temperature Range: -20 ºC to +80 ºC (-4 ºF to +176 ºF)

Temperature Resolution: 0.1 ºC (0.18 ºF)

Calibrated Accuracy: ±0.5 ºC (0 ºC to 50 ºC)

Remote Channel Temperature Sensor: Thermocouple Types J, K, T, E, R, S, B, or N

Remote Channel Temperature Range: Thermocouple Dependent

Remote Channel Temperature Resolution: Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy: Thermocouple Dependent

Pressure:

Pressure Sensor: Semiconductor

Pressure Range: 0 to 2inH2O

Pressure Resolution: 0.002inH2O

Pressure Calibrated Accuracy: 0.5 %FSR, 0.25 % at 25 °C (77 °F) typical
