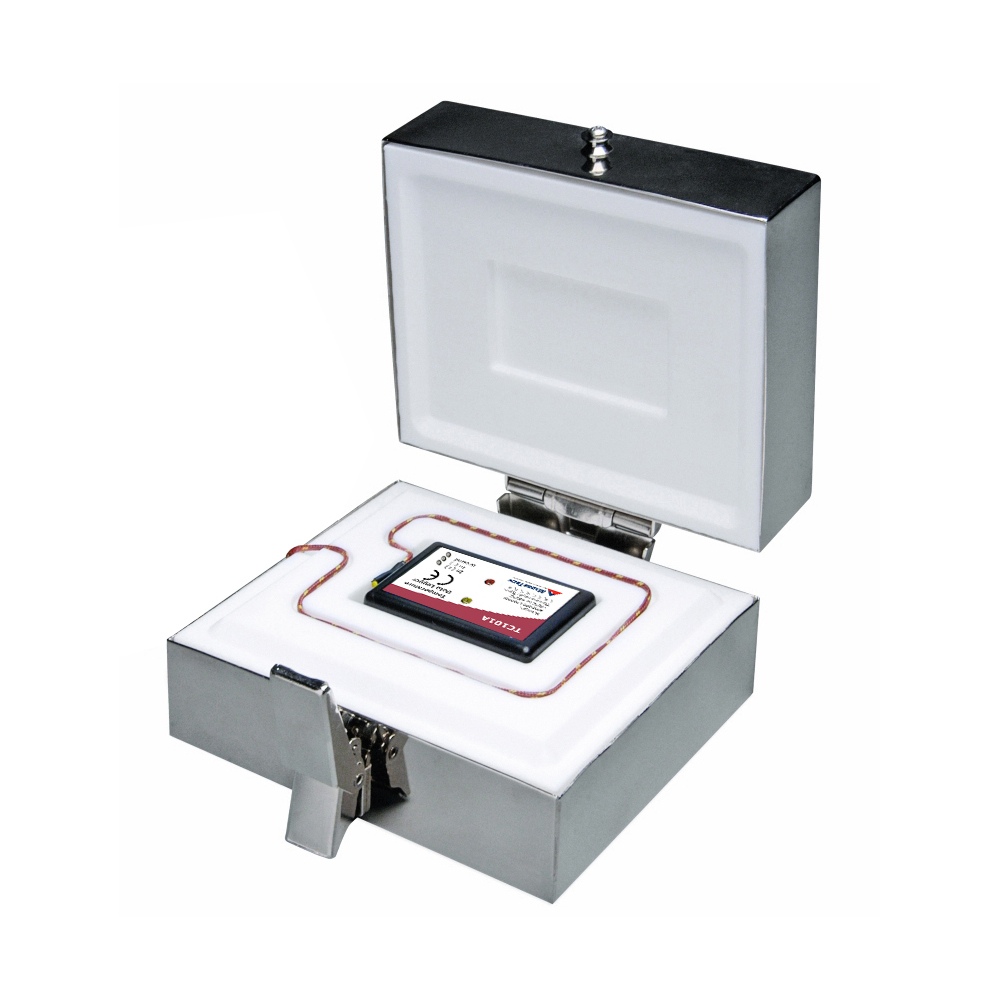

Madgetech ThermoVault Oven Temperature Profiling System (-40 °C to +80 °C)

General

Memory: 500,000 readings; software configurable memory wrap;  250,000 readings in multiple start/stop mode

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Baud Rate: 115200

Cold Junction Compensation: Automatic

Channels: 1 Internal & 1 Remote

LED Indicators: Red & Green

Battery Life: 10 Years typical at a 15 minute reading rate

Material: 304 stainless steel w/ PTFE insulation

Dimensions: 5.1 in x 4.5 in x 2.5 in (129 mm x 113 mm x 64 mm)

Operating Environment: See specifications sheet, 0 %RH to 95 %RH non-condensing

Required Interface Package: IFC200

Temperature

Internal Channel Temperature Sensor: Semiconductor

Internal Channel Temperature Resolution: 0.1 °C (0.18 °F)

Internal Channel Temperature Calibrated Accuracy: ±0.25 °C

Remote Channel Temperature Sensor: Thermocouple Types J, K, T, E, R, S, B ,N

Remote Channel Temperature Range: Thermocouple Dependent

Remote Channel Temperature Resolution: Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy: Thermocouple Dependent
