Dimension (WxLxH): 8.7"x4.9"x3.5" (220x125x90mm)
Gel Dimension (WxL):
3.9"x2.8" (100x70mm)
3.9"x3.9" (100x100mm)
Maximum Sample:
50 for 3.9"x2.8" (100x70mm) Tray(2x25 sample combs)
100 for 3.9"x3.9" (100x100mm) Tray(4x25 sample combs)
Buffer Volume: 0.08gal (300ml)
Construction: Injection molded construction, Durable, leak-proof environment for complete safety and long life
Cassette Type Electrode: Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
Electrical Safety: Lid can only be fastened in one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel: use casting dams

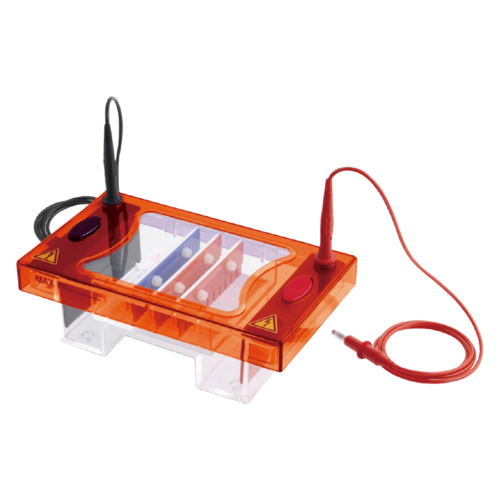

Our Midi series have been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection molded construction for durable and leak proof environment. Varieties of special combs are available to maximize your sample size.
Midi plus-1 includes 100x70 and 100x100mm gel tray to allow 100 samples per gel to be resolved. Ideal for those routinely check medium numbers of samples over short to medium gel run lengths.
