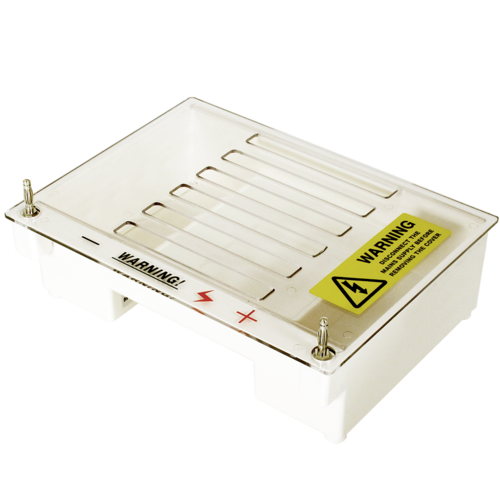

Major Science MT-108 Mini Horizontal Gel Electrophoresis System (136x188x58mm)

Appearance: Snow tank & transparent lid

Material: PC (Polycarbonate)

Lid Material: AS (Acrylonitrile-Styrene Copolymer)

Temperature Capacity: 130°C

Transparent Lid: Safety ventilation design

Gel Dimension (WxL):

• 4.1"x3.3" (105x83mm)

• 2"x3.3" (50x83mm)

Tray:

• Black well-visualization strip

• Migration distance index line

• Agarose level: 0.2" (5mm)

Rapid Casting Gel: Use gel maker stand

Maximum Gel Thickness: 0.39" (10mm)

Maximum Sample: 25 samples

Buffer Volume: 0.11gal (400ml)

Operating Temperature: 4 - 40°C

Dimension (WxLxH): 5.4"x7.4"x2.3" (136x188x58mm)

Weight: Approx. 1.5lb (0.7kg)

MT-108 horizontal electrophoresis units offer many advantages for nucleic acid separation. Agarose gels are easy to cast and samples are easy to load. MT-108's longer tray allows running of bigger fragments to attain higher resolution. Its molded design prevents cracks or leakages, and its sturdy PC provides a temperature capacity of up to 130oC. A safety interlocking cover is designed to prevent electrical hazards during electrophoresis runs. It is ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis, STS screening, Microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA fingerprinting and high-throughput analysis.
