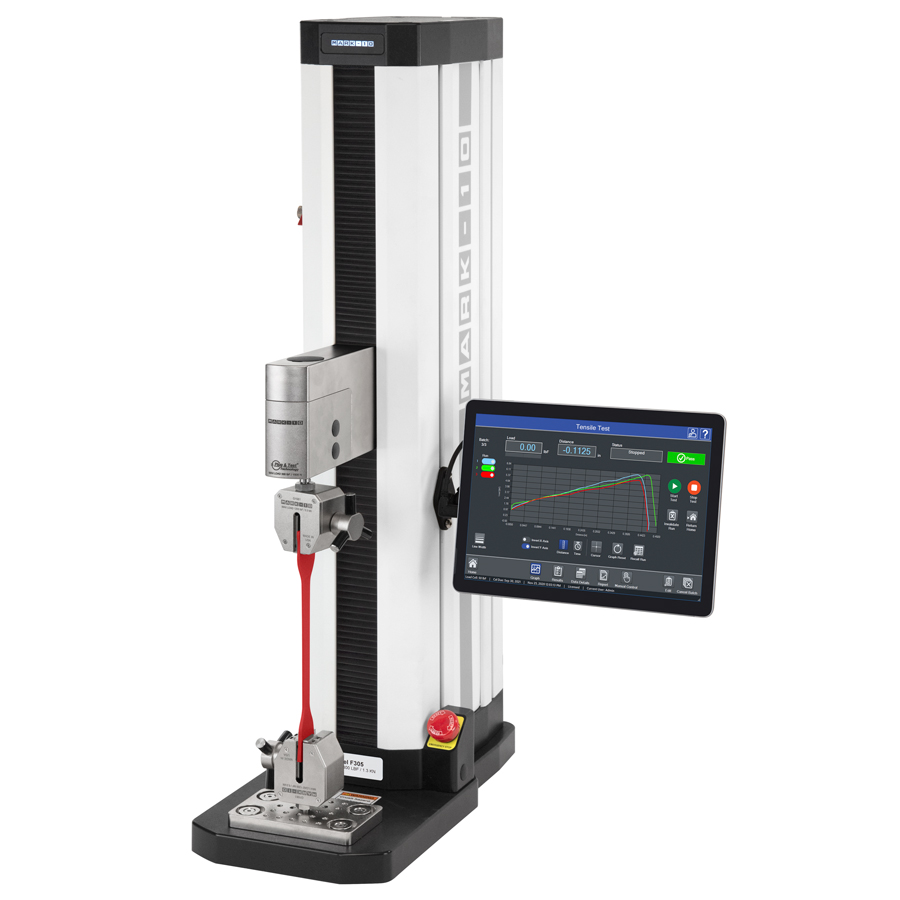

Mark-10 F505-IM Advanced Test Frame (Test Frame + Standalone Software; vertical, 500 lbF / 2.2 kN)

Load capacity*: 500 lbF / 2.2 kN

Maximum travel: 18.0 in [457 mm]

Speed range: 0.02 - 45 in/min [0.5 - 1,100 mm/min]

Load accuracy Test frame: ±0.1%

(% of full scale) Force sensor alone: Series FS05: ±0.1% | Series R06: ±0.15% | Series R07: ±0.15%

Peak sampling rate: 20,000 Hz

Data acquisition rate: 1,000 Hz

Speed accuracy: ±0.2% of setting, virtually no variation with load

Distance accuracy: ±0.002 in [0.05 mm], at any load or position, factory-compensated

Distance resolution: 0.0005 in [0.01 mm]

Limit switch repeatability: ±0.001 in [0.03 mm]

Overload protection: Motor stops at 120% of full scale of the force sensor

Power: Universal input 100-240 VAC, 50/60 Hz, 120W

Fuse type: 1.2 A, 250V, 3AG, SLO BLO

Weight (test frame only): 60 lb [27 kg]

Environmental conditions:

+ Indoor use only

+ Up to 6,500 ft [2,000 m] above sea level

+ Temperature range: 40 - 95°F [5 - 35°C]

+ Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing

+ Mains supply voltage fluctuations up to ±10 % of the nominal voltage

+ Transient overvoltages up to the levels of Overvoltage Category II

+ Use in environments up to Pollution Degree 2

Conformance: CE, UKCA

* Load capacity is reduced at higher speeds, as follows:

- F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min

- F505 / F505H: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min
