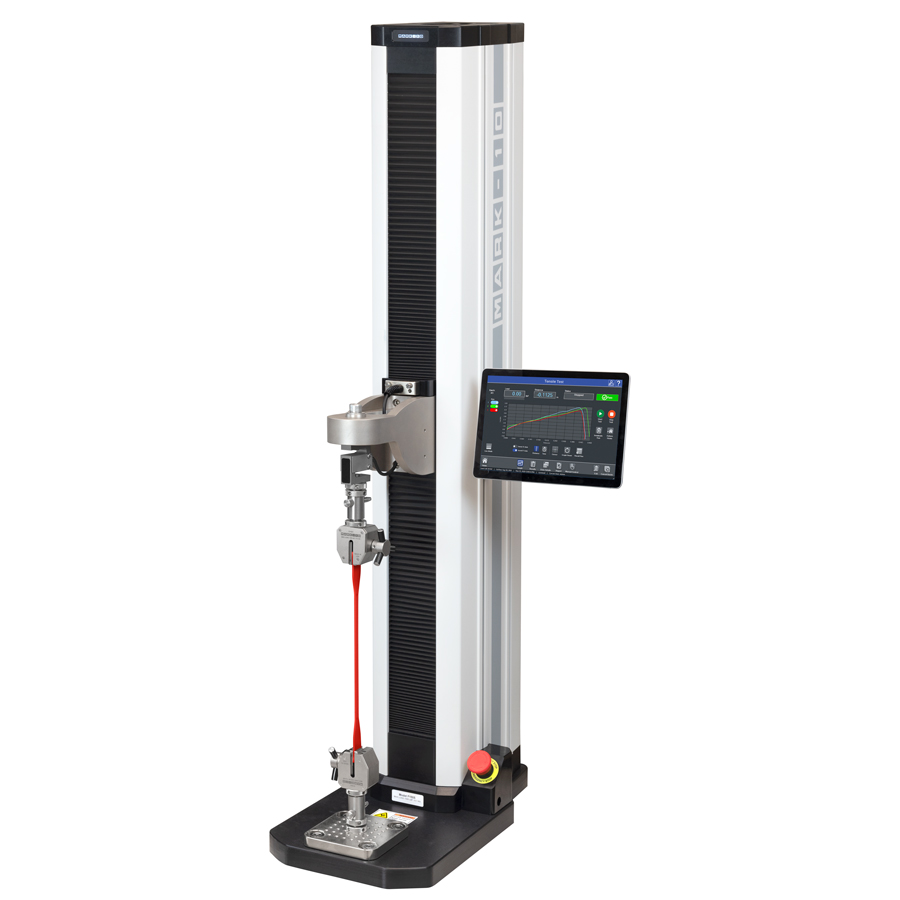

Mark-10 F755-IM Advanced Test Frame (Test Frame + Standalone Software; vertical, 750 lbF / 3.4 kN)

Load capacity*: 750 lbF[3.4 kN]

Maximum travel: 32 in [813 mm]

Speed range: 0.001 - 60 in/min [0.02 - 1,525 mm/min]

Load accuracy (% of full scale)

+ Test frame + force sensor, calibrated together: ±0.1%

+ Test frame alone: ±0.1%

+ Force sensor alone: Series FS05: ±0.1% | Series R06: ±0.15% | Series R07: ±0.15%

Speed setting accuracy: ±0.2%

Peak sampling rate: 20,000 Hz

Data acquisition rate: 1,000 Hz

Speed accuracy: ±0%, stepper motor driven

Distance accuracy: ±0.002 in [0.05 mm], at any load or position, factory-compensated

Distance resolution: 0.0005 in [0.01 mm]

Limit switch repeatability: ±0.001 in [0.03 mm]

Overload protection: Motor stops at 120% of full scale of the force sensor

Power: Universal input 100-240 VAC, 50/60 Hz, 300W

Fuse type: 4A, 3AG, SLO BLO

Weight (test frame only): 184 lb[83 kg]

Environmental conditions:

+ Indoor use only

+ Up to 6,500 ft [2,000 m] above sea level

+ Temperature range: 40 - 95°F [5 - 35°C]

+ Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing

+ Mains supply voltage fluctuations up to ±10% of the nominal voltage

+ Transient overvoltages up to the levels of Overvoltage Category II

+ Use in environments up to Pollution Degree 2

Conformance:CE, UKCA

*Load capacity is reduced at higher speeds, as follows:

- F755 / F755S: limited to 500 lbF [2.3 kN] above 35 in [900 mm]/min

- F1505 / F1505S: limited to 1,000 lbF [4.5 kN] above 60 in [1,525 mm]/min
