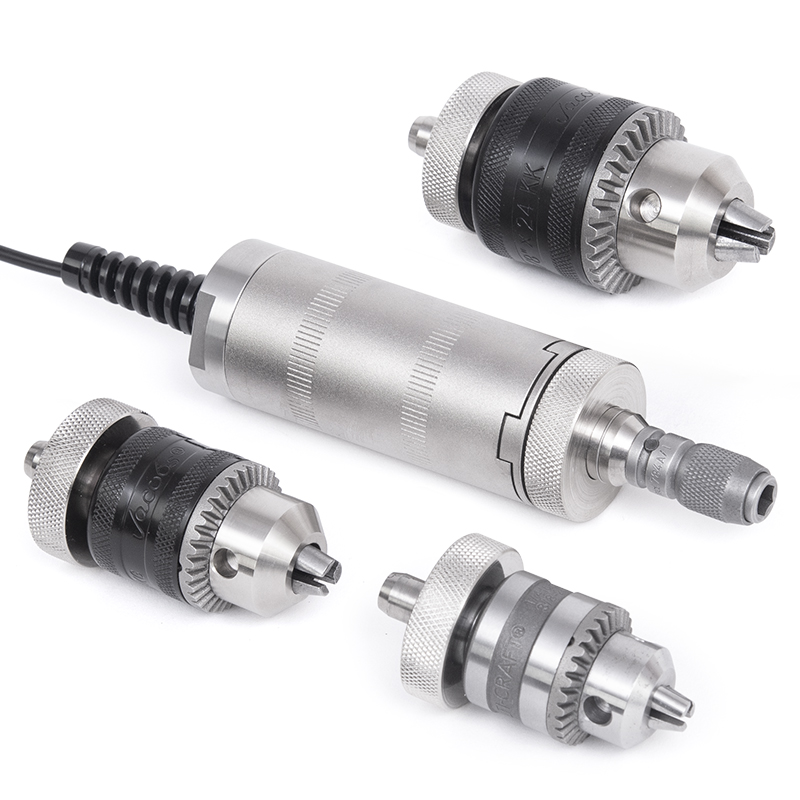

Mark-10 MR51-10Z Universal Torque Sensor (10 ozFin / 70 Nmm / 700 gFcm / 7 kgFmm / 7 Ncm)

Capacity x Resolution

With Models M7I & M5I indicators

lbFin: -

ozFin: 10 x 0.005

lbFft: -

gFcm: 700 x 0.5

kgFmm: 7 x 0.005

Nmm: 70 x 0.05

Ncm: 7 x 0.005

Nm: -

With Model M3I indicator

lbFin: -

ozFin: 10 x 0.01

kgFmm: 7 x 0.005

Ncm: 7 x 0.005

Accuracy: ±0.2% of full scale + indicator

Chuck opening range:

G1016-1: 0.028 - 0.25 in [0.7 - 6.3 mm]

G1016-2: 0.062 - 0.375 in [1.6 - 9.5 mm]

G1016-3: 0.078 - 0.5 in [2.0 - 12.7 mm]

G1017: 0.25 in [6.3 mm] hex

Safe overload: 300% of full scale

Weight: From 1.4 lb [0.6 kg]
