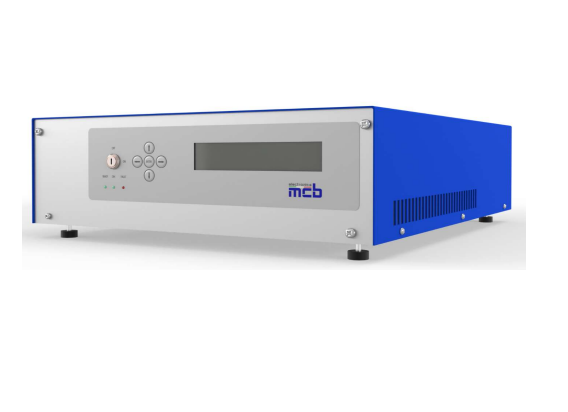

MCB Electronics PF-01-SS-R-V10-A100 Power-Flow - AC/DC Current Generator (1 kVA)

GENERAL

Power: 1 kVA

Transformer: Isolation transfomer

Full Load Efficiency: > 93%

Input Connection: Standard Terminal blocks

Output Connection: Standard terminal blocks

VOLTAGE

Input Range [PH-N]: 190 – 267 Vac

Output [PH-N]: Double Range: #1 1 - 100Vac; #2 1 - 10Vac

Regulation System [PH-N]: Not adjustable as driven in current

Sensing Function: Yes driven in current. MCB036 board with current sensors.

Total Harmonic Distortion [THD]: < 0,5%

Static Line Regulation: < 1%

Static Load Regulation: < 1%

Dynamic stability of the output voltage upon load variation: < 0.2% with 30ms stabilization time with magnetic curve

Initialization time: 10ms

CURRENT

Output and Regulation: Double Range: #1 from 0.5A to 10A; #2 from 9A to 100A

FREQUENCY

Input Range: 47Hz - 63Hz

Output [switchable from control panel and remote]: 50Hz and 60Hz [± 0,01%]

Output [adjustable from control panel and remote]: from 40Hz to 80Hz [± 1%]

OTHERS

Noise level: 60dBA

Power Protections: OVP, UVP, OCP, OTP

CONTROL PANEL

Commands: LCD display 4 x 40 characters + command buttons

Voltage and current LCD Display accuracy: ± 2 DIGIT

Voltage LCD Display resolution: no relevant in this case since there's no voltage regulation

Current LCD Display resolution: ± 1A

Frequency value visualization: Yes

Output Current Value Visualization: Yes

COMMUNICATION INTERFACES

Analog: MCB owned I/O 12 poles equipped with 0-10Vdc

RS232: Yes

Ethernet: Yes

Communication Protocols: 0-10Vdc over analog I/O 12 poles & SCPI over RS232 and Ethernet

Reference Voltage of remote controls: Common ground with ground line

MECHANICAL

Dimensions (W x H x D): Rack 19'' 3U D540mm

Weight: 25kg

ENVIRONMENTAL

Cooling: Air Forced Circulation

Operating Temperature: from 0° to +40°C

Storage Temperature: from -40° to +85°C

REGULATORY

Safety: EN 61000-6-2 (2005) + AC (2005), EN 61000-6-4 (2007)+A1(2011), EN 61010-1 (2010) + A1/AC (2019)

EMC: 2014/35/UE (LVD), 2014/30/UE(EMC)
