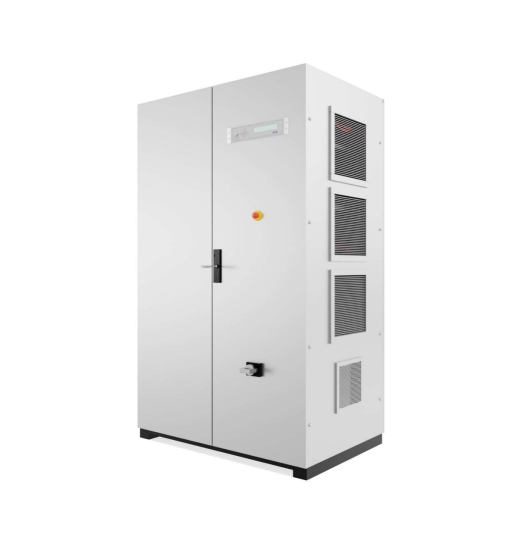

MCB Electronics PF-DC-90-T-T-V06-A15000 Power-Flow - AC/DC Current Generator (90 kW)

Power: 90 kW

Transformer Isolation: Isolation transformers

Full Load Efficiency: > 85%

Input Connection: Standard terminal blocks

Output Connection: Custom-sized copper bars at the rear of the unit

Input Voltage Range (PH-PH): 350 – 440 Vac

Output Voltage (DC): 1 – 6 Vdc

Regulation System (PH-PH): Adjustable within the output voltage range

Sensing Function: Yes, current-driven; MCB104 board with current sensors

Total Harmonic Distortion (THD): < 0.5%

Static Line Regulation: < 1%

Static Load Regulation: < 1%

Dynamic Output Voltage Stability Under Load Variation: < 5% with 100 ms stabilization time and thermal curve

Output Current Range: 1000 A – 15000 A (single range)

Input Frequency Range: 47 Hz – 63 Hz

Output Type: DC output, switchable from control panel and remote control

Output Adjustment: Adjustable from control panel and remote control

Noise Level: 80 dBA

Protection Functions: OVP, UVP, OCP, OTP

Control Interface: LCD display 4 × 40 characters with command buttons

Voltage and Current Display Accuracy: ±2 digits

Voltage Display Resolution: ±0.5 Vdc

Current Display Resolution: ±1 A

Frequency Display: Not available

Output Current Display: Yes

Analog I/O: Proprietary MCB analog I/O, 12 poles, 0–10 Vdc

RS232 Interface: Yes

Ethernet Interface: Yes

Communication Protocols: 0–10 Vdc via 12-pole analog I/O and SCPI via RS232 and Ethernet

Remote Control Reference Voltage: Common ground with ground line

Dimensions (W × H × D):

Converter Cabinet: 1200 × 2200 × 800 mm

Rectifier Cabinet: 1000 × 2200 × 800 mm

Weight: Rectifier Cabinet: 440 kg; Converter Cabinet: 580 kg

Cooling Method: Forced-air circulation

Operating Temperature: 0°C to +40°C

Storage Temperature: -40°C to +85°C

Safety Standards: EN 61000-6-2 (2005) + AC (2005), EN 61000-6-4 (2007) + A1 (2011), EN 61010-1 (2010) + A1/AC (2019)

EMC Compliance: 2014/35/EU (LVD), 2014/30/EU (EMC)
