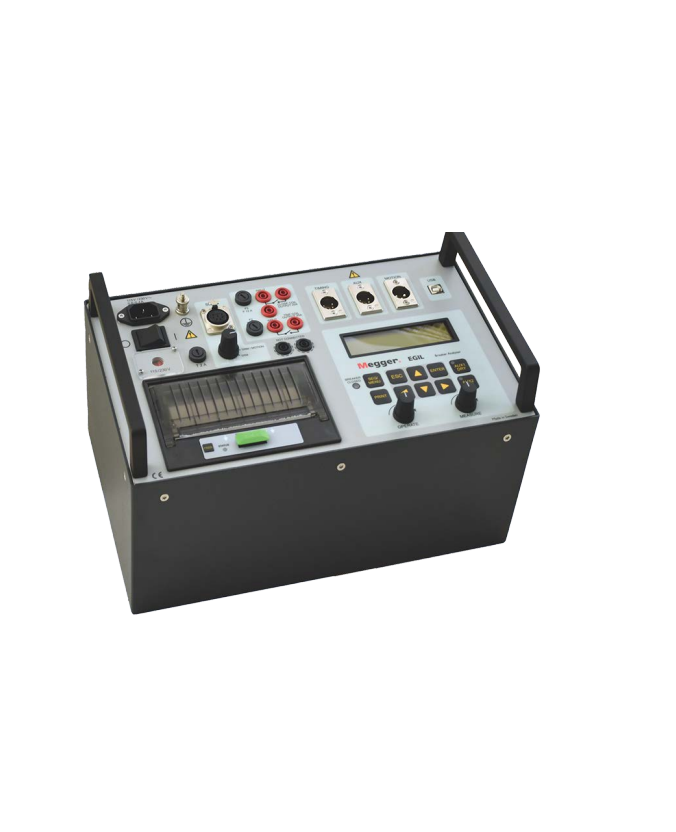

General
Mains voltage: 115/230 V AC (switchable), 50/60 Hz
Power consumption|: 100 VA (max)
Dimensions
Instrument: 354 x 210 x 181 mm (13.9” x 8.3” x 7.1”)
Transport case: 528 × 368 × 190 mm (20.8” x 14.5” x 7.5”)
Weight
Instrument: 5.9 kg (13.0 lbs)
Transport case: 3.4 kg (7.5 lbs)
Display: LCD
Available languages: English, German, French, Spanish, Swedish
Measurement section
Time measurement
Measurement time: 1 to 100 s
Resolution: 0.1 to 10 ms
Number of channels: 3 with common ground
Time base inaccuracy: 0.05% of the reading ± resolution
Status thresholds
Closed < 10 Ω ±20%
Resistor 10 Ω ±20% to 3 kΩ ±20%
Open > 3 kΩ ±20%
Open circuit voltage: 24 V ±20%
Short circuit current: 100 mA ±20%
AUX 1&2
Number of channels: 2, galvanically isolated
Contact-sensing (Dry)
Status thresholds
Closed < 600 Ω ±30%
Open > 600 Ω ±30%
Open circuit voltage: 20 V ±20% DC
Short circuit current: 25 mA ±20%
Voltage sensing (Wet)
Status thresholds
Open indication: < 8 V (polarity insensitive)
Close indication: > 13 V (polarity insensitive)
Working voltage: 250 V AC/DC
Current measurement
Range: ±25 A per channel
Resolution: 25 mA
Inaccuracy: 1% of the reading ±100 mA
Working voltage: 250 V AC/DC
Breaker operation
Sequences: C, O, C-O, O-C, O-C-O
Continuous current: 5 A
Max current: 25 A during 300 ms, rest time 1 min
Contact function: Two independent control functions
Contact characteristics: Non bouncing, closing time max. 0.1 ms
Make/Break capacity: 25 A, 250 V (AC or DC) per contact function
Start breaker operation: by rotary switch
Pulse length: Adjustable in steps of 10 ms
Pulse delay: Adjustable in steps of 10 ms
Working voltage: 250 V AC/DC
