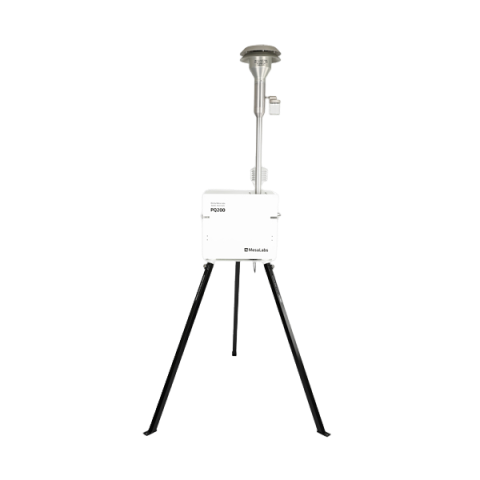

Mesalabs BGI PQ200 Sampler for particulate matter (10–20 LPM, PM10+PM2.5)

PQ200TSP: Particulate sampler with TSP inlet head. 120/240 volt. English/Spanish version available

Particle Size: PM₁₀, PM₂.₅, PM₁, TSP

Flow Range: 10–20 LPM

Sampling Interval: 24-hour sampling

Pump: Dual diaphragm vacuum pump

Flow Rate Measurement Accuracy: ±2%

Automatic multi-point flow calibration using deltaCal calibrator

Operating Temperature: -30 to 50°C

Ambient/Filter Temperature Sensor Resolution: 0.1°C

Temperature Sensor Accuracy: ±0.16°C

Barometric Pressure Sensor: 545 to 800 mmHg

Easy calibration of temperature/pressure via user-friendly menu

Internal Battery: 12V, 18Ah

Optional: Solar power

Data Output: RS232 & USB connection

Interface: Push-button

Language Options: English, Spanish

USB connectivity for easy data download via flash drive

Firmware upgrade via flash drive

Diagnostic log file for condition tracking
