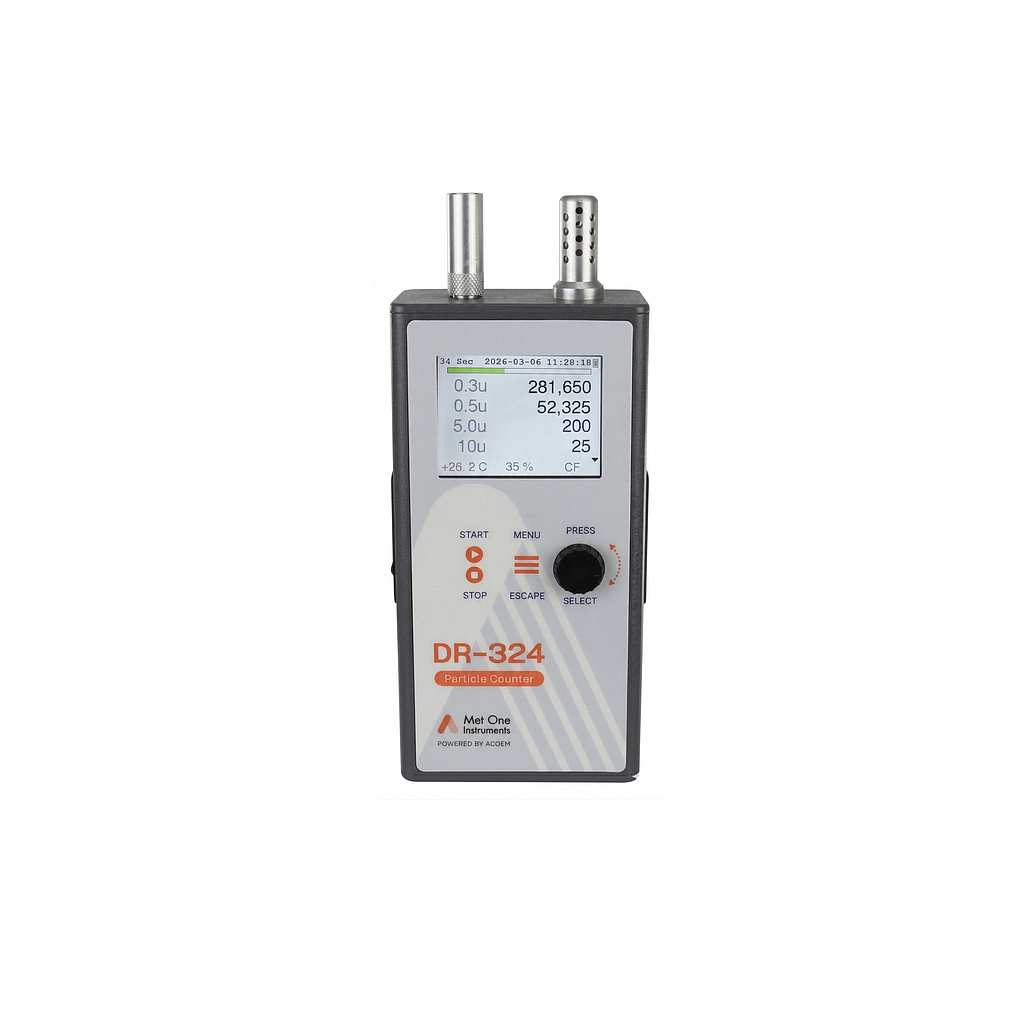

METONE DR-324 Handheld Particle Counter (0.3–10 µm)

PERFORMANCE

Particle Counter Sizes: 0.3-10 µm user selectable (default sizes = 0.3 µm, 0.5 µm, 5.0 µm, 10.0 µm)

Concentration Range: 0-3,000,000 particles per cubic foot (105,900 particles/L)

Particle Size Accuracy: ±10% to calibration aerosol

Flow Rate: 0.1 cfm (2.83 Ipm)

Sample Time: 30-9,999 seconds 0

Hold Time: to 9,999 seconds

Temp/RH probe: +3°C/+ 5% RH

ELECTRICAL

Light Source: Laser Diode, 90mW, 780 nm

Battery: 7.4VLi-ionbatterypack.

Battery Life: 8 hours continuous operation

Battery Charge Time: Fully changed in 2.5 hours

AC Adapter/Charger: Li-ion battery charger, 100-240 VAC, 50/60Hz

Communications: USB (WiFi, Ethernet, and RS-485 available on optional docking station)

INTERFACE

Display:2.8 inch TFT full-color LCD

Keyboard: 2 button membrane keypad with rotary dial

PHYSICAL

Height: 8.8" (22.35 cm)

Width: 3.75" (9.53 cm)

Depth: 2.0" (5.1 cm)

Weight: 1.00 lb 13.5 oz (0.84 kg)

ENVIRONMENTAL

Operating Temperature: 0° C to +50° C

Storage Temperature: -20° C to +60° C
