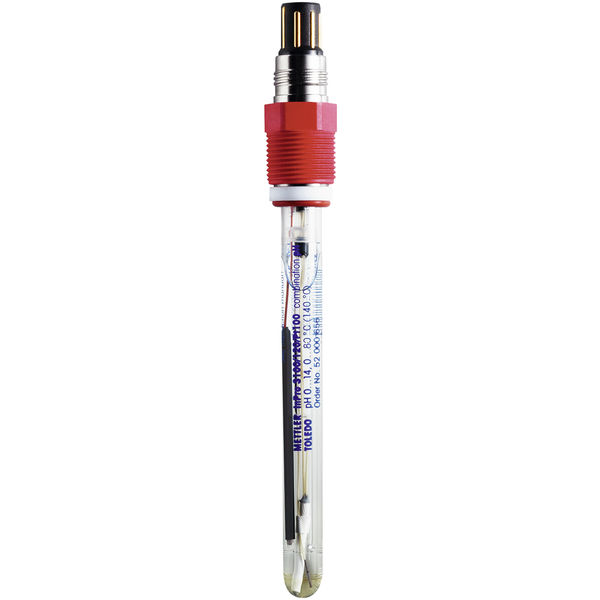

Mettler Toledo 52000656 pH Sensor InPro3100/120/PT100

pH Range: 0 – 14

Model Family: InPro3100(i)

Sensor Length: 120 mm

Shaft Material: Glass

Cable Connector: VP

Reference System: Gel electrolyte, ceramic diaphragm, Argenthal cartridge with silver-ion trap

Process Connection: Pg 13.5 Thread

Temperature Sensor: Pt 100

Measurement Parameter: pH

pH Sensing Technology: Highly Alkali Resistant Glass Membrane for Tough Conditions (HA)

Refillable Electrolyte: No

ISM (Digital) or Analog: Analog

Certificates & Approvals: ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb CE EHEDG FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6 METTLER TOLEDO Quality Certificate PED

Hazardous Area Approvals: Yes

Operating Pressure (Bar): 0 to 6 barg @ 140 °C

Operating Pressure (PSI): 0 to 87 psig @ 284 °F

Primary Media/Application: Pharmaceutical/Life Science Production

Sterilizable/Autoclavable: Yes

Operating Temperature (Celsius): 0 °C - 80 °C

Operating Temperature (Fahrenheit): 32 °F - 176 °F

Hygienic/Biocompatibility Approvals: Yes
