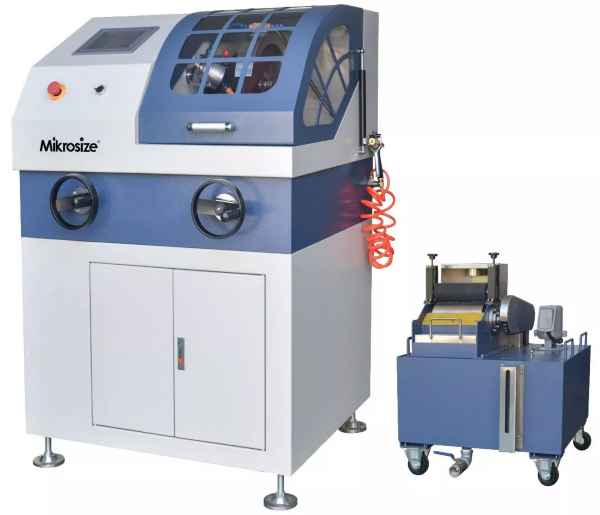

Mikrosize MCut-90A 금속 전단 기계 (Φ90mm, 4kW)

Cutting Method: Manual/Automatic, Y axis Table feeding

Cutting Mode: Continuous Cutting, Pulse Cutting

Feeding Speed: Manual / Automatic 1~240mm/min

Cut-off Wheel: Φ300×2×Φ32mm

Max Cutting Capacity: Φ90mm

Y Axis Travel: 260mm

X Axis Travel: 40mm

Z Axis Travel: 50mm

Spindle Speed: 500~3000r/min

Electromotor Power: 4kW

Cutting Table: 435×300mm，T-slot 12mm

Clamping Vise: Quick Clamp，Jaw Height 60mm

Display and Control: 10 inch Touch screen

Power Supply: 380V, 50Hz，12A, Three-phase five-wire

Dimensions: 910×935×1350mm

Net Weight: 430kg

Water Tank Capacity: 80L

Pump Flow: 50L/min

Water Tank Dimensions: 610×550×680mm

Water Tank Weight: 85kg
