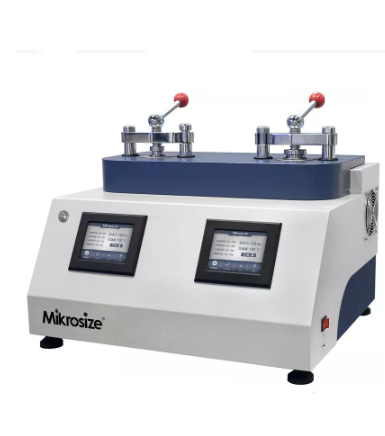

Mikrosize MPress-2A Auto Metallographic Mounting Press (650×600×550mm)

Mounting Head: Dual

Mould Diameter: Ф25mm，Ф30mm，Ф40mm (Choose one)

Cavity Height: 108mm, effective 60mm

Heating Power: Ф25mm/ Ф30mm  1.2kW;  Ф40mm  1.6kW

Pressure: 150bar (equivalent to 15Mpa, 150kgf/cm2, not adjustable)

Heating Temperature: 50~180℃ (The default is 120℃)

Hold Time: Adjustable (The default is Ф40mm 1min30s,  Ф25mm/Ф30mm 1min)

Cooling Method: External water source cooling

Power Supply: 220V, 50Hz，10A

Machine Dimensions: 650×600×550mm

Net Weight: 105Kg

Packing List

Machine Mainframe: 1 set

Rotary Handle: 1 pc

Upper Mould Block: 1 pc

Pump Breathing Cap: 1 pc

Water Inlet Pipe: 1 pc

Water Outlet Pipe: Ф10mm: 1 pc

Water Inlet Filter Screen: 1 pc

Hoop: 1 pc

Bakelite Powder: 500g: 1 bottle

Measuring Cup: 1 pc

Funnel: 1 pc

Usage Instruction Manual: 1 copy
