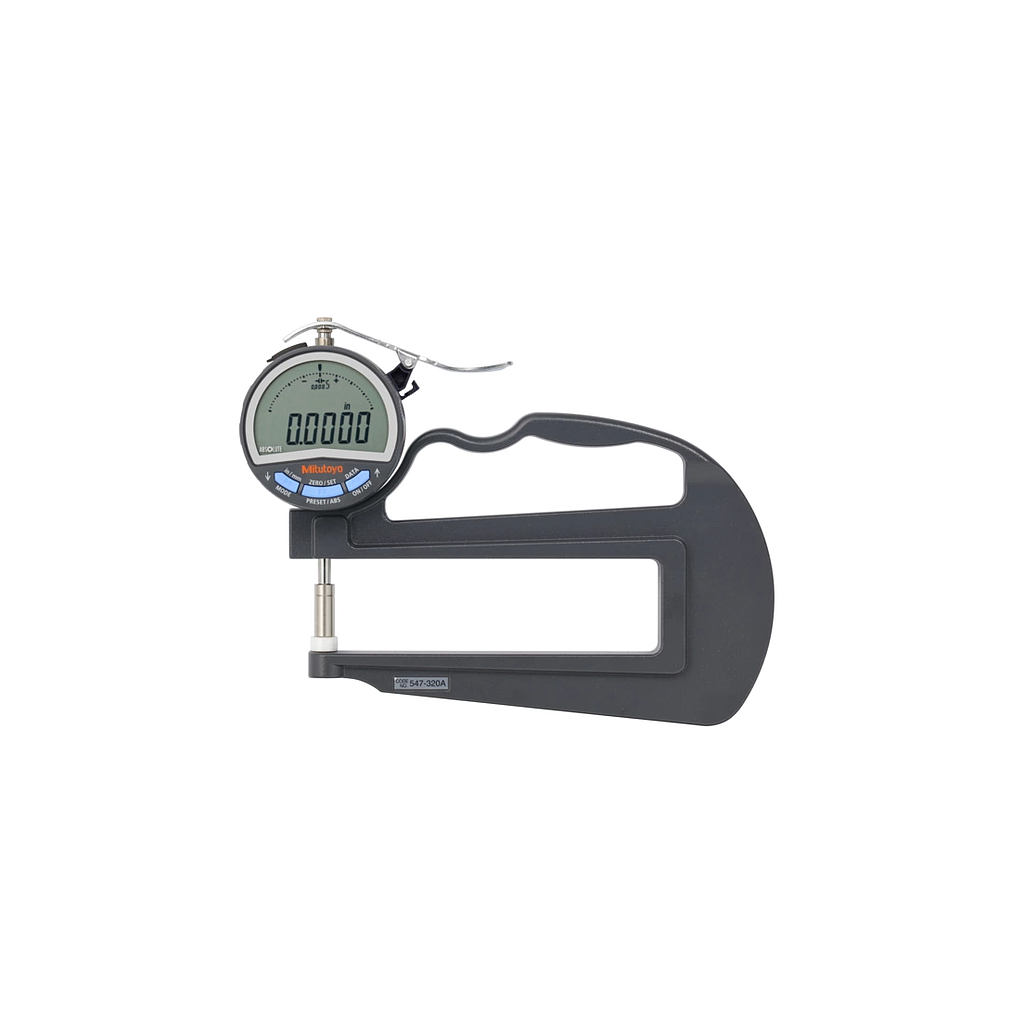

Range: 0 - 0.4 "
Type: Ceramic disc contact points and large jaw capacity
Digital step: 0.0005"/0.01 mm
Accuracy: ±20 µm
Parallelism: 0.0005"/ 0.01 mm
Max. measuring depth: 120 mm
Measuring force: ≤ 1.5 N
Display: LCD, character height 11 mm
Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply: 1 battery CR2032 (3V)
Battery life: Continuous use: approx. 2700h
DATA/HOLD: Yes
Digimatic data output: Yes
ON/OFF: Yes
Function lock: Yes
GO/±NG judgement: Yes
ABS / INC (INC ZERO): Yes
Calculation function (with formula): Yes
Counting direction switchable: Yes
Digimatic S1 Bidirectional interface: Yes
Analog bar resolution selection:: Yes
Auto Power OFF setting: Yes
Analog bar resolution switchable: Yes
Inch/Metric switchable: Yes
Calibration warning function: Yes
Digital step switchable: No
Digital Scale: Electrostatic capacitance type absolute linear encoder
Mass: 385 g
