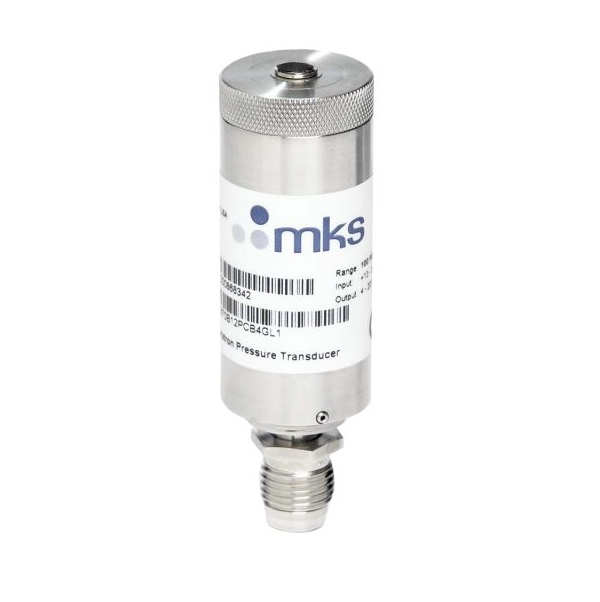

MKS AA07B Micro-Baratron® 압력 변환기 (100psia; 0-10 VDC; 15-pin HD)

Configuration: Single-ended

Measurement Type: Single-ended

Full Scale Pressure: 100 psia

Accuracy: 1.0% of Reading

Analog Output: 0-10 VDC

Fitting Type: 0.25 in. weld stub

Electrical Connector: 15-pin high density type D

Zero Temperature Coefficient: 0.02% of Full Scale/°C

Span Temperature Coefficient: 0.04% of Reading/°C

Overpressure Limit: 150 psia

Burst Pressure: 1,000 psia

Exposed Materials: Incoloy®

Surface Finish: <5 µin Ra

Power Requirements: 13-32 VDC

Operating Temperature Range: 0-50°C (32-122°F)

Display: LDM-C (Red LED)

Compliance: CE

For specific range please check the attachment below!
