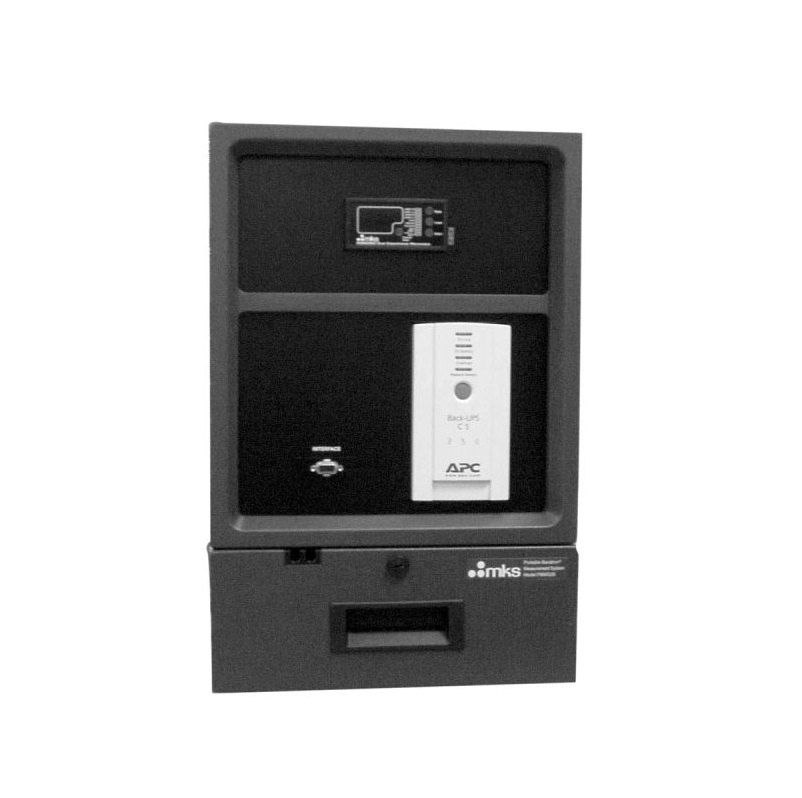

MKS PBMS2F Two-Channel Portable Baratron® Measurement System (2 channels)

Type: 2-channel pressure standard

Transfer Standard: 627F Absolute Sensor (NIST traceable)

Accuracy: (non-linearity, hysteresis, and non-repeatability) ± 0.12% of Reading (all ranges except 0.15% for 0.05 and 0.1 Torr, ±0.25% for 0.02 Torr)

Resolution: 1 x 10^-4 of Full Scale

Fitting Type: 0.5 inch tubulation, NW16KF or 8 VCR®, female

Operating Temperature: 15-40°C

Readout: PDR2000, 4½-digit LCD

Power Requirements: 110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A

Warm-up Time: 4 hours (Use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.)

Enclosure: Metal wheeled caddy with extendible handle and tilt stand

Weight: 75 lb. (34 Kg)

For specific range please check the attachment below!

Literature

Drawing
