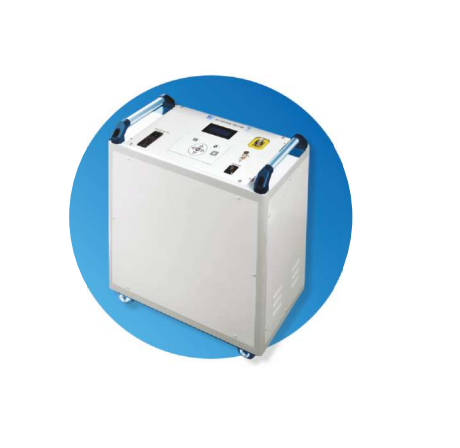

MOTWANE MVLF-40 Very Low Frequency HV Generator (40kV / 28 kV)

Parameters:

Test Voltage Peak / RMS: 40kV / 28 kV

Leakage Current (Peak) max: 10 mA

Distortion: Less than 3 %

*DC Test Voltage: Selectable Positive or Negative to peak value as per model

Accuracy: ±3%

Waveform: Sine / Square / Cosrect

Test Frequency: Selectable 0.1Hz, 0.05Hz, 0.025Hz

Load Carrying Capacity: 0.1 Hz < 04. μF; 0.05 Hz < 08. μF; 0.01 Hz < 16. μF

General:

Power Supply: 230V ± 10%

Power Frequency: 50 / 60 Hz

Stability of Frequency: Less than + 1%

Power Fuse : 5A

**Weight: <40 kg

Operational Environment:

Operating Temperature : +10C to 55C

Storage Temperature : -5C to 60C

Relative Humidity: up to 80% RH
