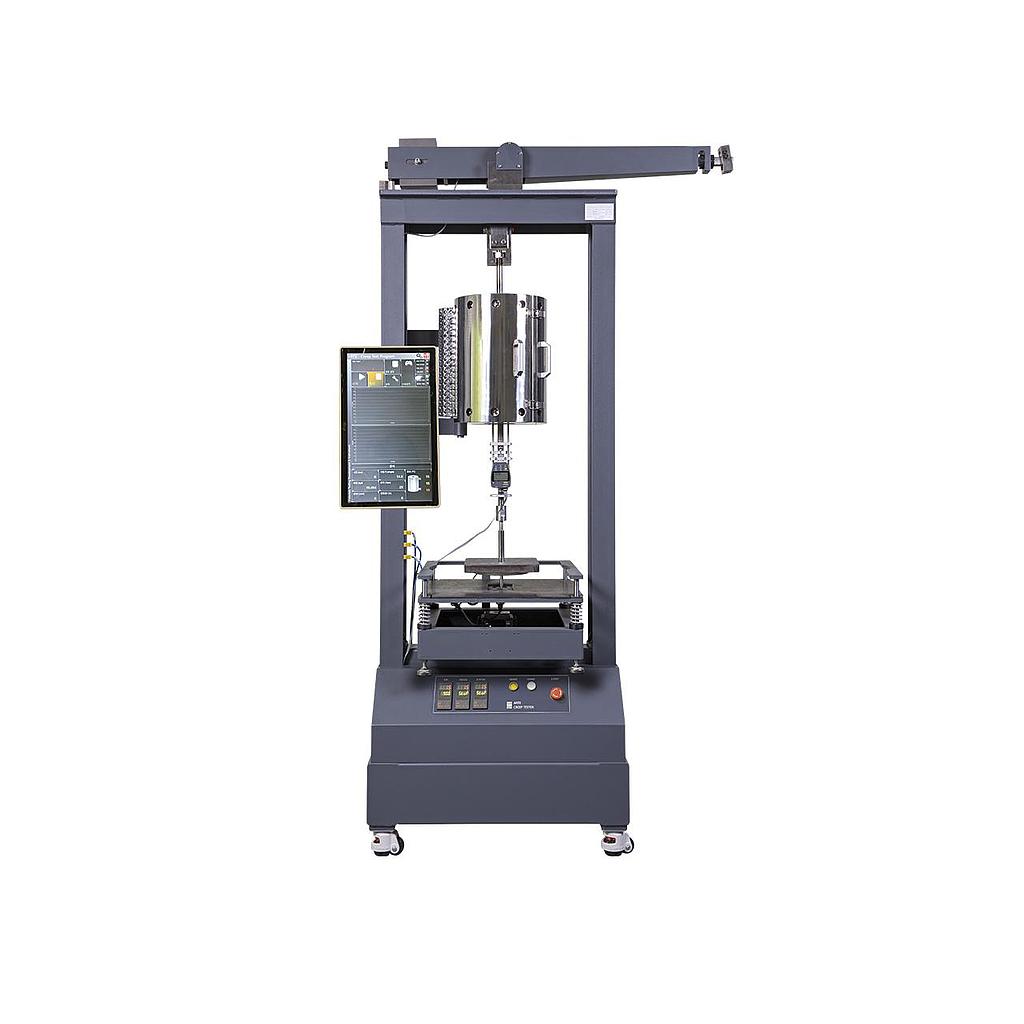

MTDI Arte Creep Tester (AC 220V (25A), 60HZ)

Frame:

Volume: 2 tonf (5 tonf)

Size: 1,130W x 520D x 2,250H

Weight: 340kg (including shock absorber)

Everyone: AC 220V (25A), 60HZ

Precision: ±0.5%

Lever ratio: 10:1, 20:1

Rod Up/Down Movement Distance: 190mm

Display items: Test duration, inclination, displacement, strain, motor direction of operation, temperature

Displacement sensor: 25mm or 50mm, 1㎛ resolution

Tilt sensor: 0.05 ° resolution

Data: Time, slope, displacement, strain, temperature per channel

Furnace:

Temperature: 500 ~ 1,000℃ (Standard)

Temperature controller: Autonics TK4H Series

Thermocouple: K, R, S, B type

Heater: 1.5kW X 3, KANTHAL-A1

Chamber:

Temperature: RT ~ 350℃(Standard), -170 ~ 350℃(Option)

Temperature controller: Autonics TK4H Series

Heater: Cartridge heater, circulation system

Thermocouple: K, R type
